Product Serial : QC-42111

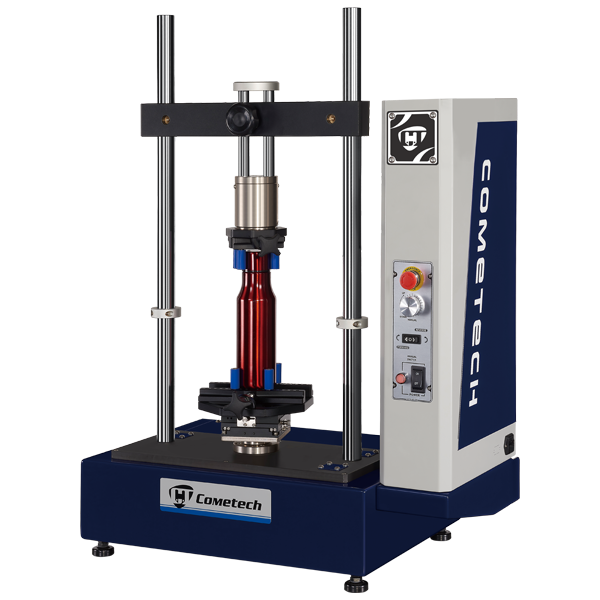

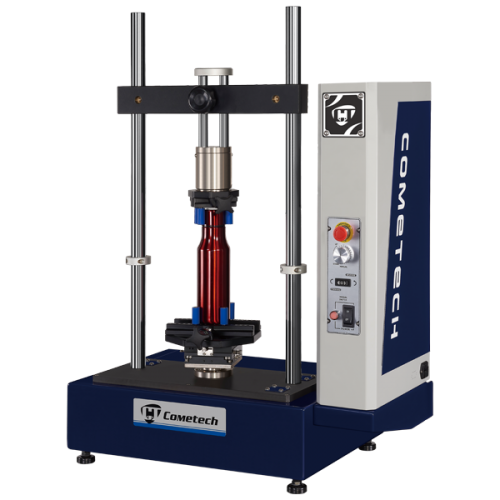

Programmable Torque Tester
This model is equipped with servo motor. The sample is rotated automatically for clockwise / counter-clockwise torque analysis. The software is included in standard to help analysis Max. Static Torsion, Dynamic Torsion, etc. The torque value of sample can be analyzed under different speed conditions. The torque curve and the torsion direction are displayed in real time during the test, and the torque value of the sample is fully recorded when the sample is rotated. The sample clamping method adopts a customized fixture, which is customized according to the sample size provided by the user.


Industry : Package, Containers, Electrical part, Motor, Bearing, Related transmission parts
Inquiry
Capacity 3/6/10/15/50/100N-m
Torsion Resolution 1/100,000
Torsion Unit MN-m、kN-m、N-m、N-cm、mN-m、kgf-m、
kgf-cm、kgf-mm、gf-cm、gf-mm、lbf-ft、lbf-in、ozf-in
Speed Unit RPH、RPM、RPS
Angular Displacement Unit deg、rad、rev
Power Type Servo Motor
Test Speed 0.50 – 100.00 RPM (180.00 – 36000.00 deg/min) Digital Input
Test Direction Clockwise/ Counter-clockwise
Angular Resolution 0.01°
Max. Sampling Rate 1200Hz
Test Space Width : Max. 340mm
Height : Max. 400mm ( without grip)
Operation Mode Operated by software
Power Supply Single phase AC 220~240V，5A
Dimension 70 × 40 × 106 cm
Weight 75 kg
1. Software is included in standard package to support multiple setting and analysis

2. Equipping with precision jog to slightly adjust the upper grip height for convenient clamping

3. Support clockwise/ counter clockwise direction setting, and various units setting of torsion/ speed/ angular displacement

4. Support auto stop setting of time/ torsion/ the percentage of torsion drop/ angular displacement

5. Digital speed setting to perform high accuracy and large speed range from 0.50 – 100.00 RPM

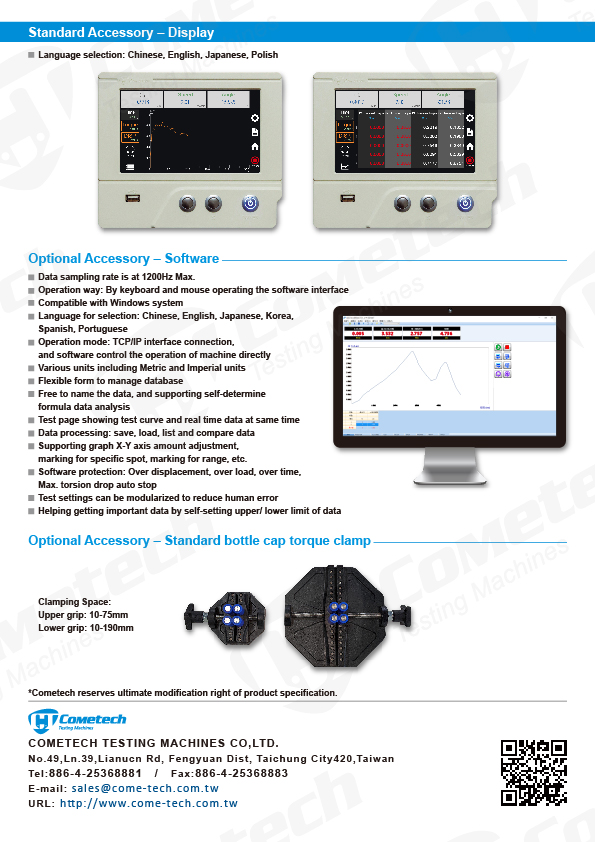

Standard Accessory – Software

1. Support multiple steps setting and cycle test
2. Different data can be imported to show at a time
3. Data sampling rate is at 1200Hz Max.
4. Operation way: By keyboard and mouse
    operating the software interface
5. Compatible with Windows system
6. Language for selection: Chinese, English,
    Japanese, Korea, Spanish, Portuguese
7. Operation mode: TCP/IP interface connection,
    and software control the operation of machine directly
8. Various units including Metric and Imperial units
9. Flexible form to manage database
10.Free to name the data, and supporting
     self-determine formula data analysis
11.Test page showing test curve and real time
    data at same time
12.Data processing: save, load, list and compare data
13.Supporting graph X-Y axis amount adjustment,
    marking for specific spot, marking for range, etc.
14.Software protection: Over displacement,
     over load, over time, Max. torsion drop auto stop
15.Test settings can be modularized to reduce human error
16.Helping getting important data by
     self-setting upper/ lower limit of data
Optional Accessory
Standard bottle cap torque clamp

Clamping Space:
Upper grip: 10-75mm
Lower grip: 10-190mm
