Automatic Torque Tester

Home / Products / Torque Test / Automatic Torque Tester
Product Serial : QC-41110
Automatic Torque Tester

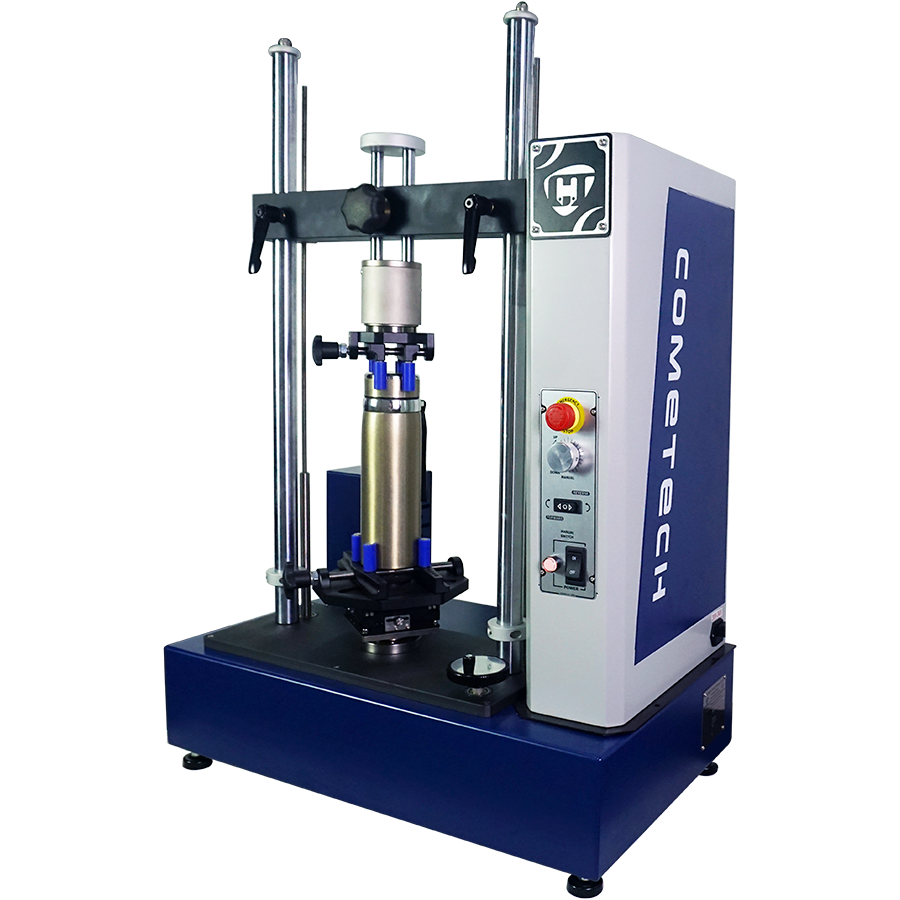

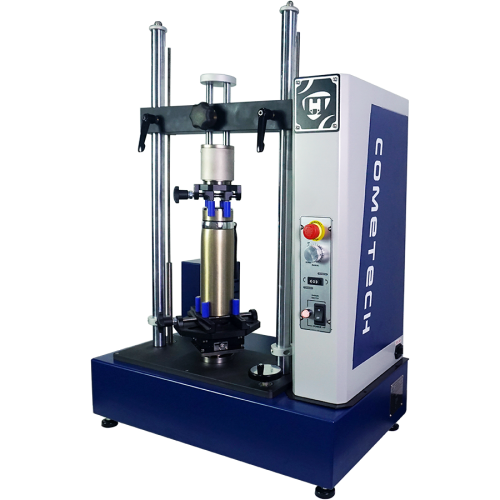

The torque sensor of this testing machine is fixed on the top of the machine, and the sample to be tested is fixed at the lower place. The torsion test is carried out by rotating the lower clamp. This machine is equipped with a standard display to directly read the test data, and can be set to perform torque test and analysis under different speed conditions. The torque curve and the torsion direction are displayed in real time during the test, and the torque value of the sample is fully recorded when the sample is rotated. The sample clamping method adopts a customized fixture, which is customized according to the sample size provided by the user.

Industry : Package, Electrical part, Motor, Bearing, Related transmission parts
Inquiry

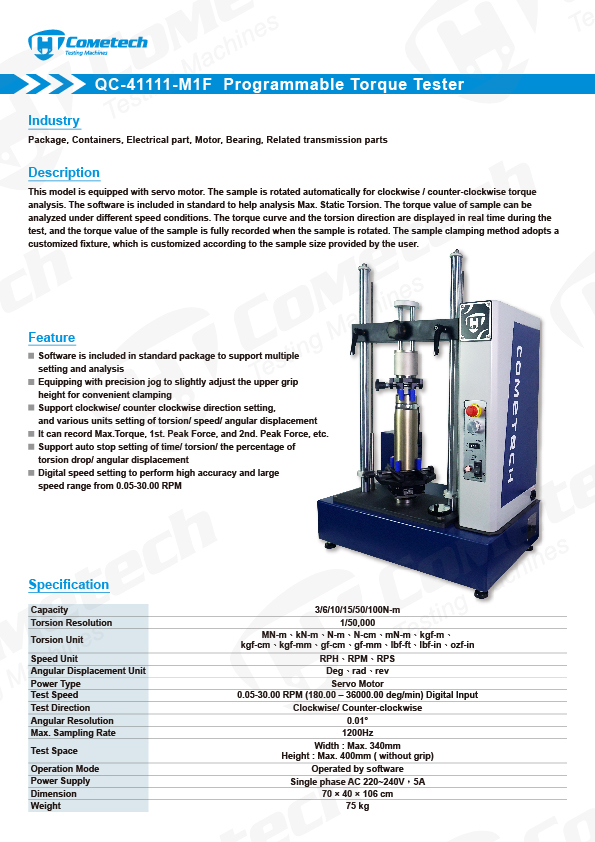

Capacity 3/6/10/15/50N-m
Torsion Resolution 1/10,000
Torsion Unit kN-m、N-m、N-cm、mN-m、kgf-m、kgf-cm、gf-cm、
lbf-ft、lbf-in、ozf-in、N-mm、cN-m、gf-mm
Speed Unit rev/min(RPM), deg/min ( RPH, RPS for software)
Angular Displacement Unit rad, deg ( rev for software)
Power Type 24V DC Motor
Test Speed 0.50 – 23.00 RPM (180.00 – 8280.00 deg/min)±1% Digital Input
Test Direction Clockwise/ Counter-clockwise
Angular Resolution 0.01°
Max. Sampling Rate 1200Hz
Test Space Width : Max. 340mm
Height : Max. 400mm ( without grip)
Operation Mode Operated by display, and software for optional
Power Supply Single phase AC 100 – 240V, 5A
Dimension 70 × 40 × 106 cm
Weight 70 kg
1. Equip with 7” TFT color touch display to show real time torque value and curve

2. Display can record up to 50 data, and user can use USB drive to record the raw data during the test

3. Support clockwise/ counter clockwise direction setting, and various units setting of torsion/ speed/             angulardisplacement

4. Support auto stop setting of time/ torsion/ the percentage of torsion drop/ angular displacement

5. Digital speed setting to perform high accuracy and large speed range from 0.50 – 25.00 RPM

6. User can purchase software for optional choice

7. Cover wide range voltage spec from 100 – 240V to support wide occasions.
Standard Accessory – Display

1. Language selection: Chinese, English, Japanese, Polish

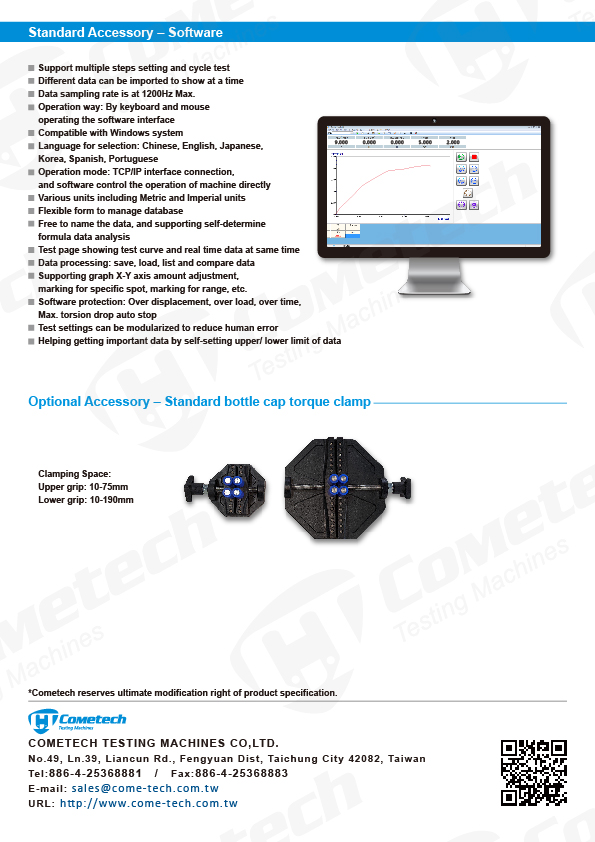

Optional Accessory – Software

1. Data sampling rate is at 1200Hz Max.
2. Operation way:
    By keyboard and mouse operating the software interface
3. Compatible with Windows system
4. Language for selection: Chinese, English, Japanese,
    Korea, Spanish, Portuguese
5. Operation mode: TCP/IP interface connection,
    and software control the operation of machine directly
6. Various units including Metric and Imperial units
7. Flexible form to manage database
8. Free to name the data, and supporting self-determine
    formula data analysis
9. Test page showing test curve and real time
    data at same time
10.Data processing: save, load, list and compare data
11.Supporting graph X-Y axis amount adjustment,
     marking for specific spot, marking for range, etc.
12.Software protection: Over displacement,
     over load, over time, Max. torsion drop auto stop
13.Test settings can be modularized to reduce human error
14.Helping getting important data by self-setting upper/
     lower limit of data
Optional Accessory
Standard bottle cap torque clamp

Clamping Space:
Upper grip: 10-75mm
Lower grip: 10-190mm
