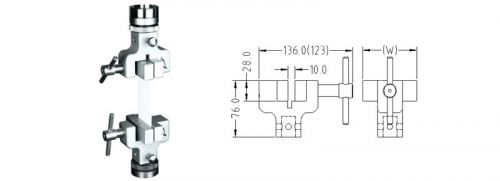

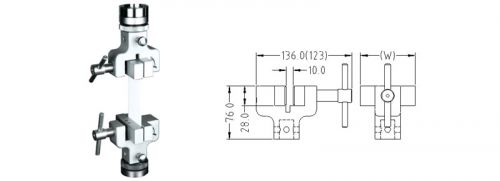

GR-D01 Vice Action Grip - Serrated Face
Capacity 2kN
Jaw face width (W)mm
Specimen thickness 0.2~4mm
Mini. load cell 200N
Temperature limits -10~200℃
Weight 1600g
Jaw face type Serrated Face
GR-D01 Vice Action Grip - Serrated Face

Suitable to test fabric,textile webbing,metal film, rubber and plastic.
GR-D01A：W=76.2mm      GR-D01B：W=50.8mm      GR-D01C：W=25.4mm

GR-D01 Vice Action Grip - Rubber Face
Capacity 2kN
Jaw face width (W)mm
Specimen thickness 0.2~4mm
Mini. load cell 200N
Temperature limits -10~200℃
Weight 1600g
Jaw face type Rubber Face
GR-D01 Vice Action Grip - Rubber Face

Suitable to test fabric,textile webbing,metal film,rubber and plastic.
GR-D01D：W= 76.2 mm      GR-D01E：W= 50.8 mm      GR-D01F：W = 25.4 mm

GR-D01 Vice Action Grip - Wave Face
Capacity 2kN
Jaw face width (W)mm
Specimen thickness 0.2~4mm
Mini. load cell 200N
Temperature limits -10~200℃
Weight 1600g
Jaw face type Wave face
GR-D01 Vice Action Grip - Wave Face

Suitable to test fabric and textile webbing
GR-D01G：W= 76.2 mm      GR-D01H：W=50.8 mm      GR-D01I：W = 25.4 mm

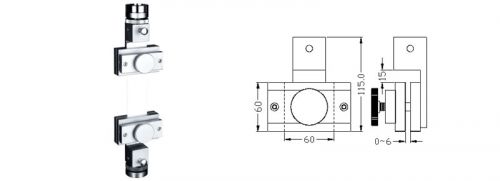

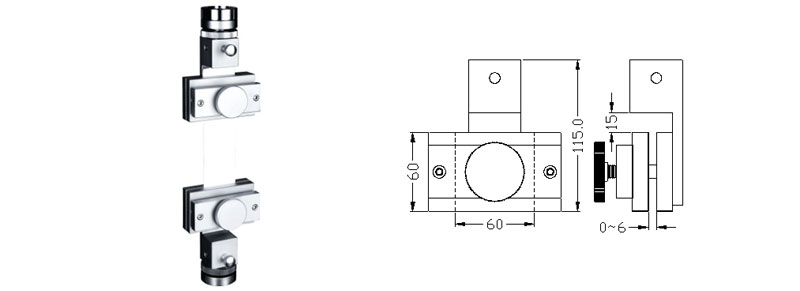

GR-D020 Miniature Tensile Grip
Capacity 5kN
Jaw face width 60mm
Specimen thickness 0.2~4mm
Mini. load cell 200N
Temperature limits -10~100℃
Weight 2200g
GR-D020 Miniature Tensile Grip

Suitable to test fabric, paper, textile webbing, rubber and plastic.

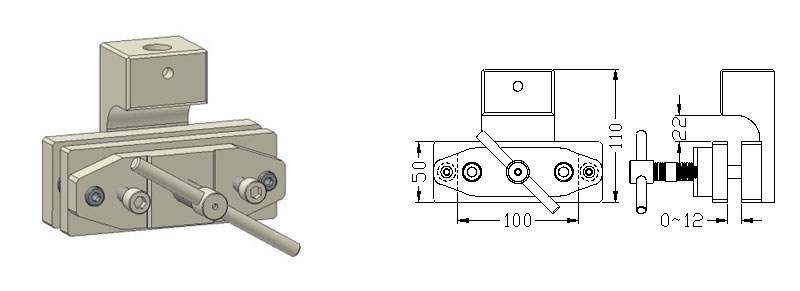

GR-D02A Miniature Tensile Grip
Capacity 10kN
Jaw face width 100mm
Specimen thickness 0.2~6mm
Mini. load cell 500N
Temperature limits -10~100℃
Weight 3450g
GR-D02A Miniature Tensile Grip

Suitable to test fabric, textile webbing

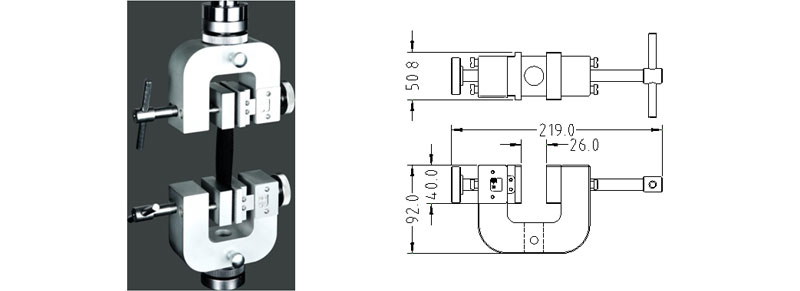

GR-D030 Flat Surface Strengh Grip
Capacity 5kN
Jaw face width 50.8mm
Specimen thickness 0.5~25mm
Mini. load cell 500N
Temperature limits -10~100℃
Weight 2800g
GR-D030 Flat Surface Strenght Grip

Suitable to test various fabric belts, textile webbing and plastic.

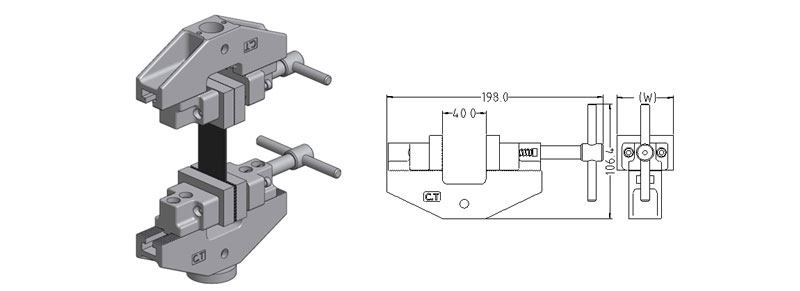

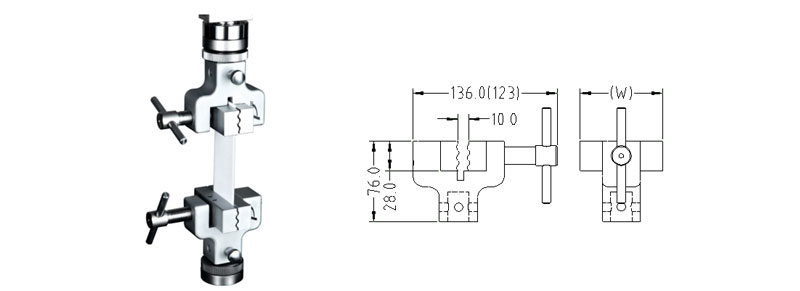

GR-D04 Single Adjustable Action Grip
Capacity 5kN
Jaw face width (W)mm
Specimen thickness 0.2~40mm
Mini. load cell 200N
Temperature limits -10~200℃
Weight 1550g
Jaw face type Serrated face
GR-D04 Single Adjustable Action Grip

Suitable to test fabric,textile webbing,metal,film,rubber and plastic
GR-D04A：W= 76.2 mm      GR-D04B：W=50.8 mm      GR-D04C：W = 25.4 mm

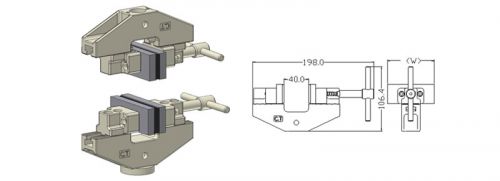

GR-D04 Single Adjustable Action Grip
Capacity 5kN
Jaw face width (W)mm
Specimen thickness 0.2~4mm
Mini. load cell 200N
Temperature limits 0~200℃
Weight 1456g
Jaw face type Rubber face
GR-D04D Adjustable Vice Action Vise grip

Suitable to test fabric,textile webbing,metal,film,rubber and plastic
GR-D04D：W= 76.2 mm      GR-D04E：W= 50.8 mm      GR-D04F：W = 25.4 mm

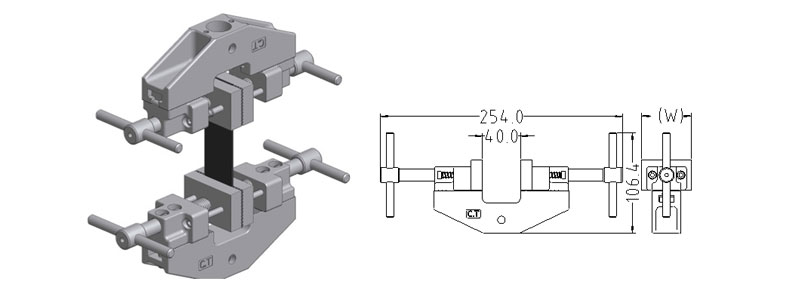

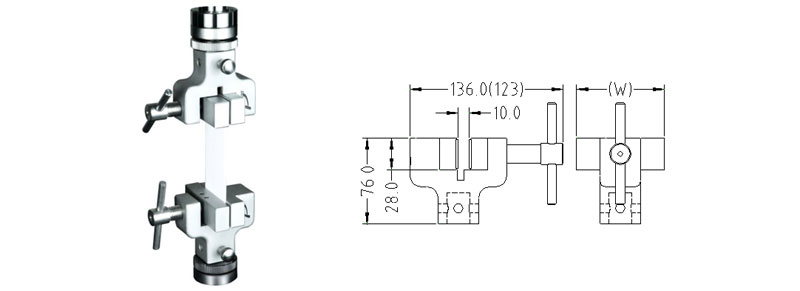

GR-D05 Dual-way Vise Action Grip
Capacity 2kN
Jaw face width (W)mm
Specimen thickness 0.2~40mm
Mini. load cell 200N
Temperature limits -10~200℃
Weight 1540g
Jaw face type Serrated face
GR-D05 Dual-way Vise Action Grip

Suitable to test fabric,textile webbing,metal,film,rubber and plastic
GR-D05A：W= 76.2 mm      GR-D05B：W=50.8 mm      GR-D05C：W = 25.4 mm

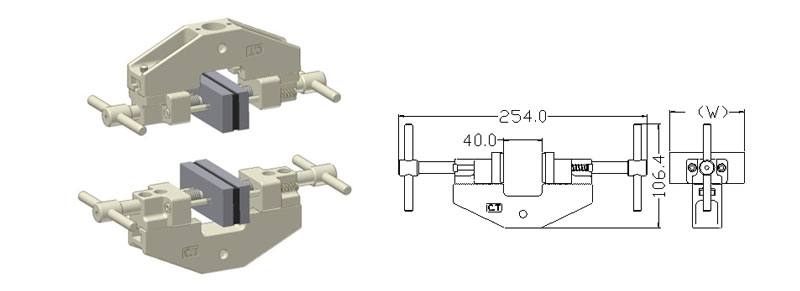

GR-D05 Dual-way Vise Action Grip
Capacity 2kN
Jaw face width (W)mm
Specimen thickness 0.2~40mm
Mini. load cell 200N
Temperature limits 0~200℃
Weight 1580g
Jaw face type Rubber face
GR-D05 Dual-way Vise Action Grip

Suitable to test fabric,textile webbing,metal,film,rubber and plastic
GR-D05D：W= 76.2 mm      GR-D05E：W= 50.8 mm      GR-D05F：W = 25.4 mm
