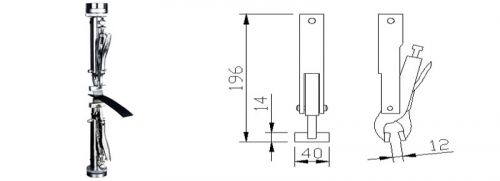

GR-A010 Pliers Grips
| Capacity | 2kN |
|---|---|
| Jaw face width | 40mm |
| Specimen thickness | 1~12mm |
| Mini. load cell | 200N |
| Temperature limits | -10~200℃ |
| Weight | 984g |
Suitable to test rubber, plastic film, leather and fabric.

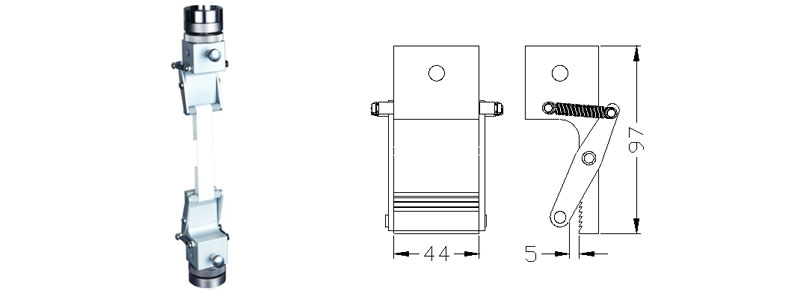

GR-A020 Spring Loaded Fold Grips
| Capacity | 2kN |
|---|---|
| Jaw face width | 44mm |
| Specimen thickness | 0.2~3mm |
| Mini. load cell | 200N |
| Temperature limits | -10~200℃ |
| Weight | 687g |
Suitable to test rubber, plastic film and textile.

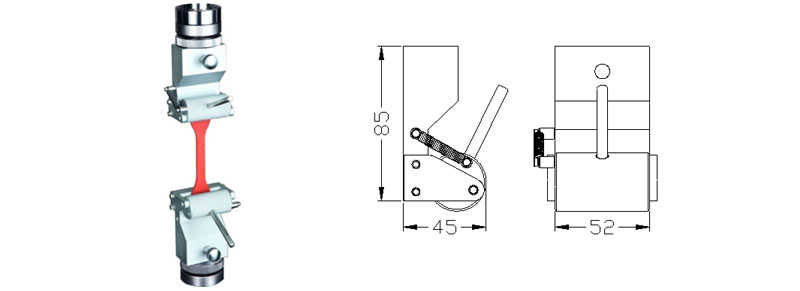

GR-A030 Eccentric Grips
| Capacity | 2kN |
|---|---|
| Jaw face width | 52mm |
| Specimen thickness | 0.2~4mm |
| Mini. Load cell | 200N |
| Temperature limits | -10~200℃ |
| Weight | 1143g |
Suitable to test ductile rubber and ductile plastic.
