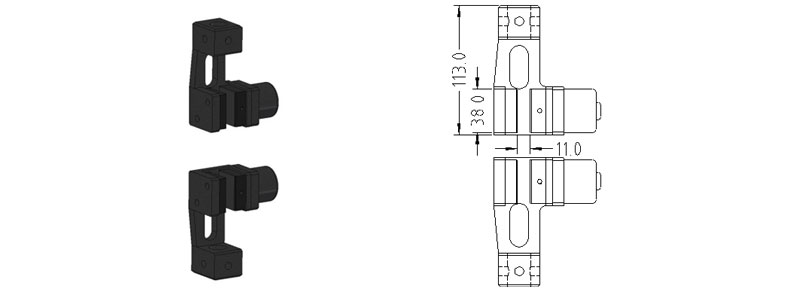

GR-H010 Small Pneumatic Plane Grips
Capacity 100N
Jaw face width 30mm
Specimen thickness 0.1~3mm
Mini. load cell 20N
Temperature limits -10~60℃
Weight 580g
GR-H010 Small Pneumatic Plane Grips

Suitable to test plastic, rubber film, wire and paper.

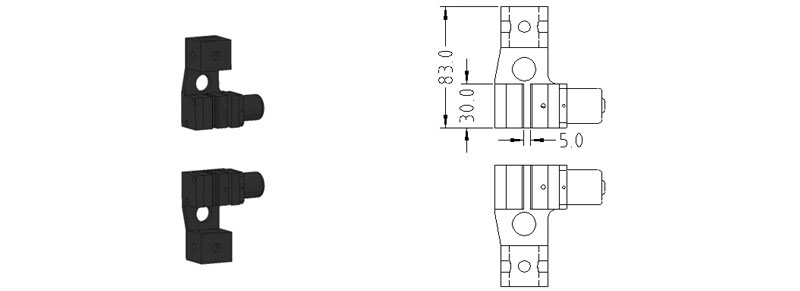

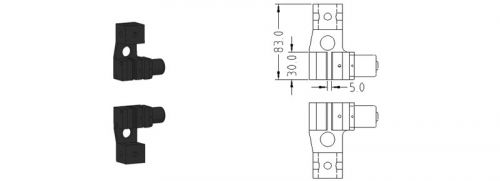

GR-H020 Small Pneumatic Grip
Capacity 20N
Jaw face width 16mm
Specimen thickness 0.1~3mm
Mini. load cell 20N
Temperature limits -10~60℃
Weight 197g
GR-H020 Small Pneumatic Grip

Suitable to test plastic film and wire.

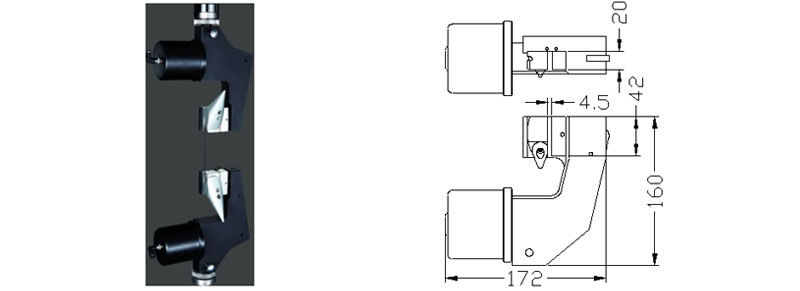

GR-H040 Pneumatic String Grips
Capacity 1kN
Specimen thickness 0.1~4mm
Mini. load cell 200N
Temperature limits -10~60℃
Weight 2503g
Standard ASTM D2256
GR-H040 Pneumatic String Grips

Suitable to test high tension nylon wire.

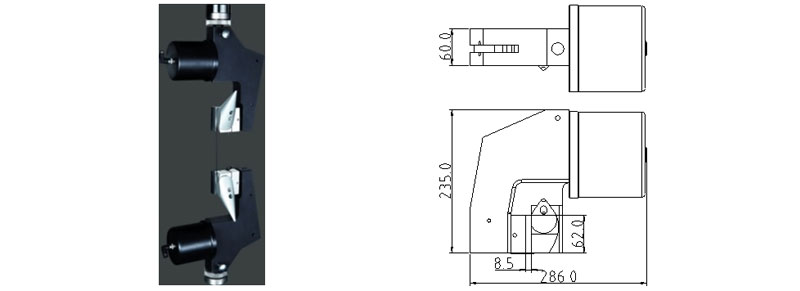

GR-H04A Pneumatic String Grips
Capacity 3kN
Specimen thickness 0.1~6mm
Mini. load cell 200N
Temperature limits -10~60℃
Weight 9033g
Standard ASTM D2256
GR-H04A Pneumatic String Grips

Suitable to test high tension nylon wire.

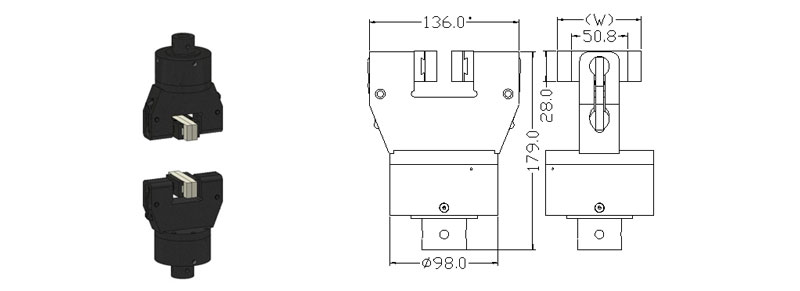

GR-H130 Pneumatic Grips
Capacity 1kN
Jaw face width (w)mm
Mini. load cell 200N
Temperature limits -10~60℃
Weight 2436g
GR-H130 Pneumatic Grips

Suitable to test fabric, paper, leather and rubber and plastic sheet.

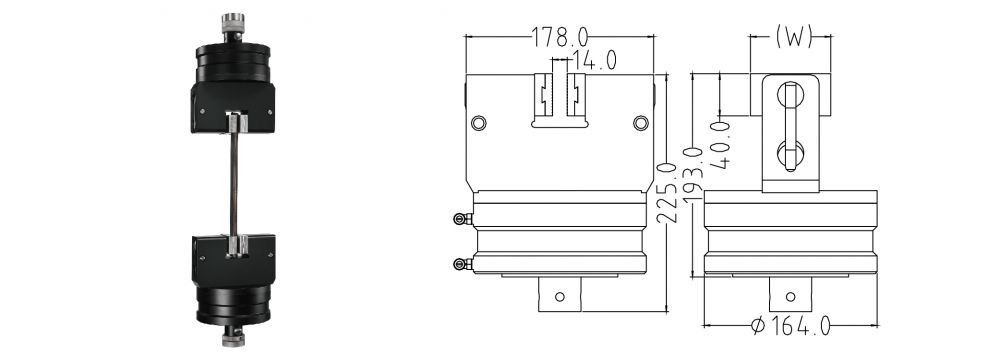

GR-H170 Pneumatic Grips
Capacity 5kN
Jaw face width (W)mm
Specimen thickness 0.5~12mm
Mini. load cell 1kN
Temperature limits -10~60℃
Weight 7900g
GR-H150 Pneumatic Grips

Suitable to test rubber and plastic.
