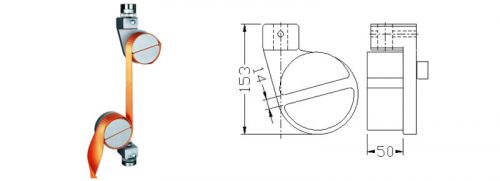

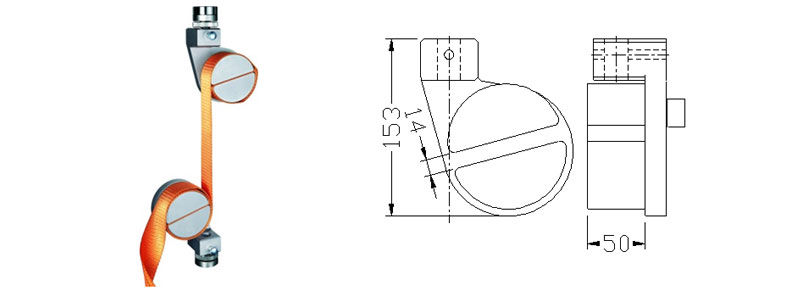

GR-J010 Heavy Duty Belt Grip
| Capacity | 10kN |
|---|---|
| Jaw face width | 50mm |
| Specimen thickness | 0.5~4mm |
| Mini. load cell | 2kN |
| Temperature limits | 0~100℃ |
| Weight | 4900g |
| Standard | ASTM D5035 ASTM D5034 |
Suitable to test textile webbing and high-tension material.

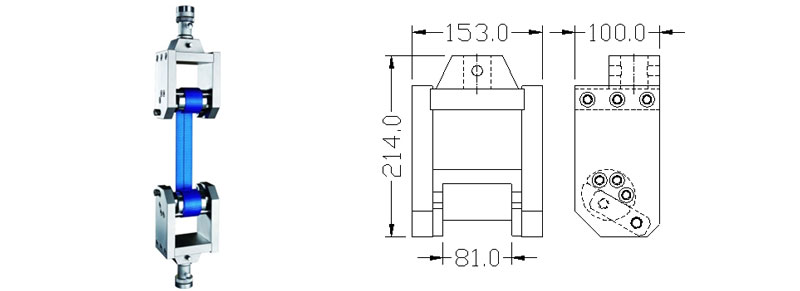

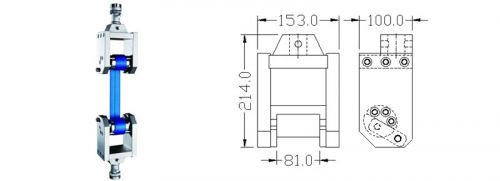

GR-J020 Webbing Grip
| Capacity | 20kN |
|---|---|
| Jaw face width | 81mm |
| Specimen thickness | 0.5~3mm |
| Mini. load cell | 2kN |
| Temperature limits | -30~200℃ |
| Weight | 11975g |
| Standard | ASTM D5035 ASTM D5034 |
Suitable to test textile webbing and high-tension material.

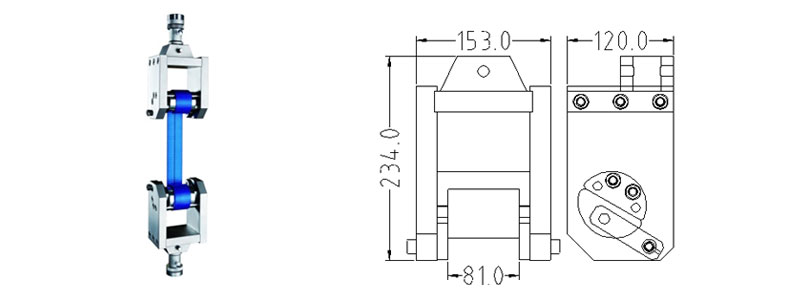

GR-J02A Webbing Grip
| Capacity | 50kN |
|---|---|
| Jaw face width | 81mm |
| Specimen thickness | 0.5~3mm |
| Mini. load cell | 2kN |
| Temperature limits | -30~200℃ |
| Weight | 15960g |
| Standard | ASTM D5035 ASTM D5034 |
Suitable to test textile webbing and high-tension material.
