Motor Wrap Reel

Home / Products / Textile / Motor Wrap Reel
Product Serial : QC-302A

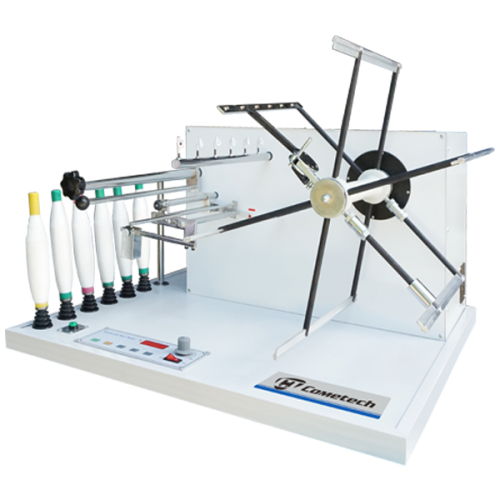

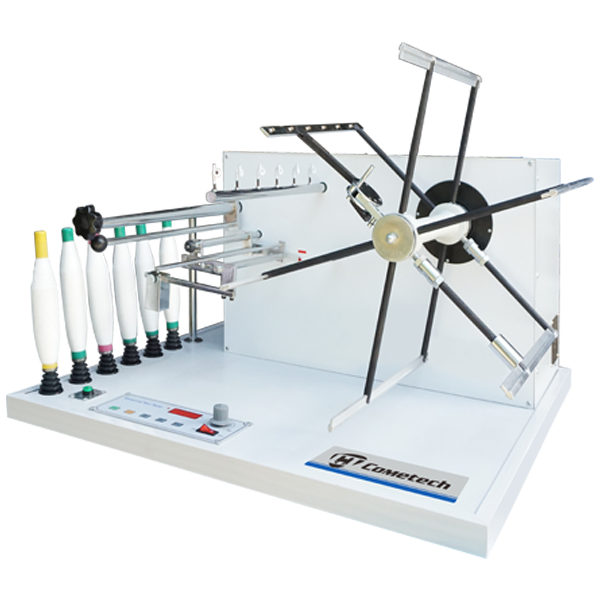

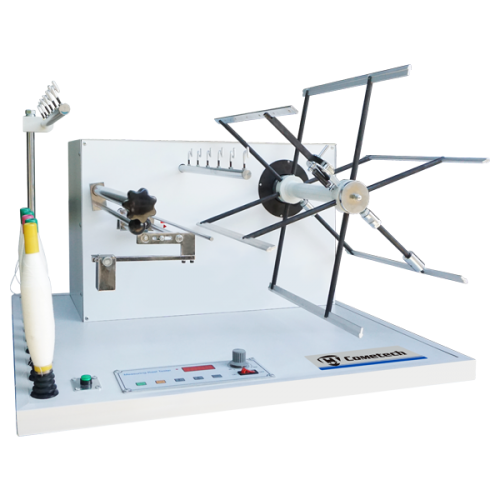

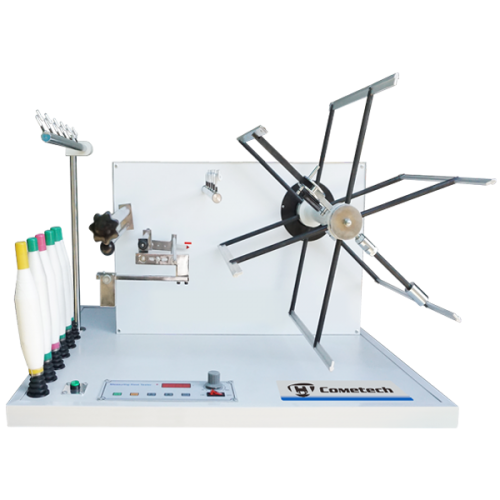

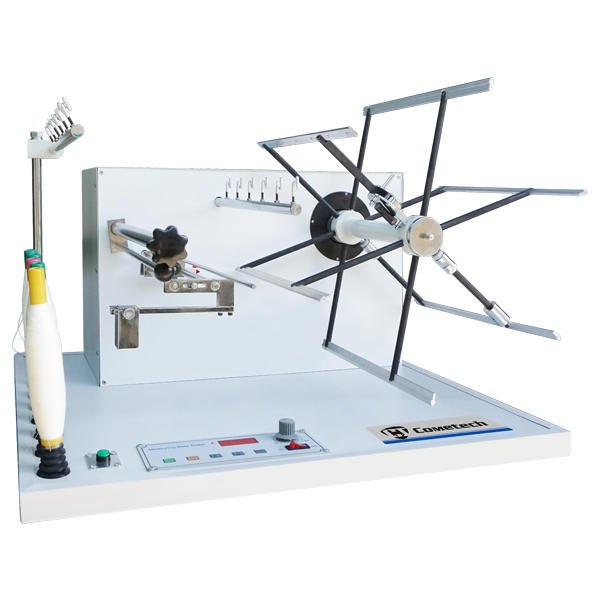

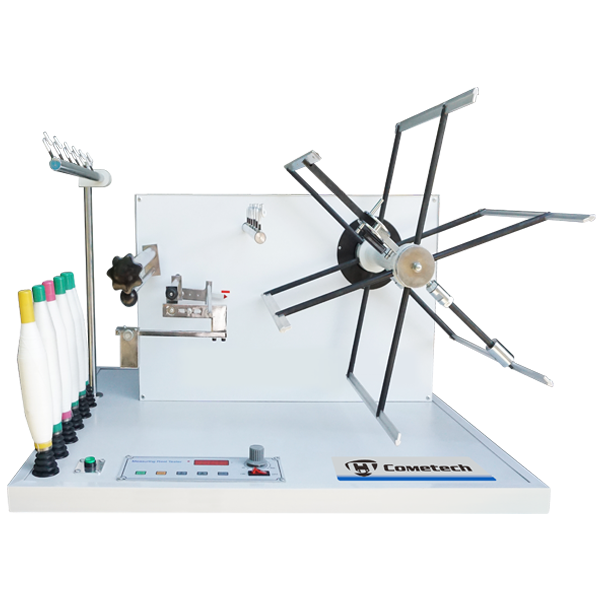

Motor Wrap Reel
Confirm to ASTM D1059 ASTM D1907 ASTM D2260 ISO 7211 ISO 2060 BS 2010 Standard
By manual or motor-driven with speed 30-300 RPM, revolving the winder at a set circumference, wind the yarn prepared for certain rounds and length in order to obtain yarn’s lea strength and after balance weighing to calculate yarn counts.


Industry : Textile
Model QC-302A

Reel Winding number

6 sets
Rotate speed 30~300 r/min
Circumference 1meter/turn or optional 1.5yard/turn
Counter 5~9,999 times
Power AC 110V or 220V
Dimension 75 × 68 × 50 cm
Weight 55 kg
