Vertical Rebound Resilience Tester

Home / Products / Rubber and Plastic / Vertical Rebound Resilience Tester
Product Serial : QC-638

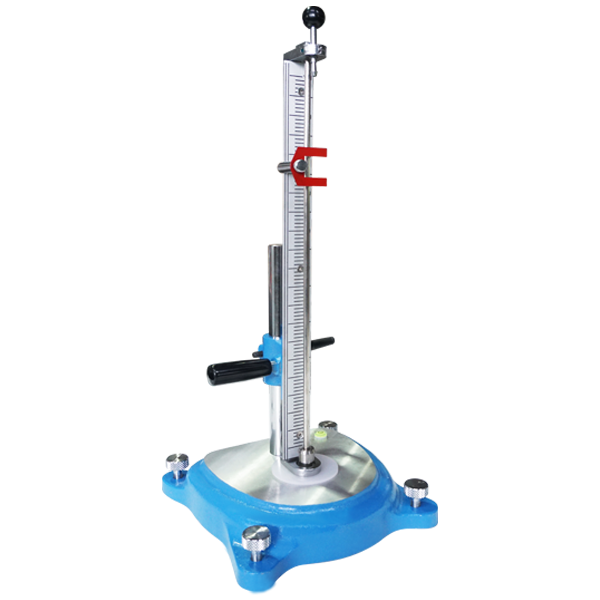

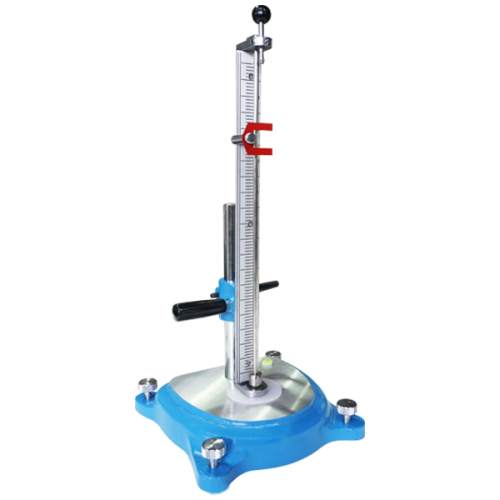

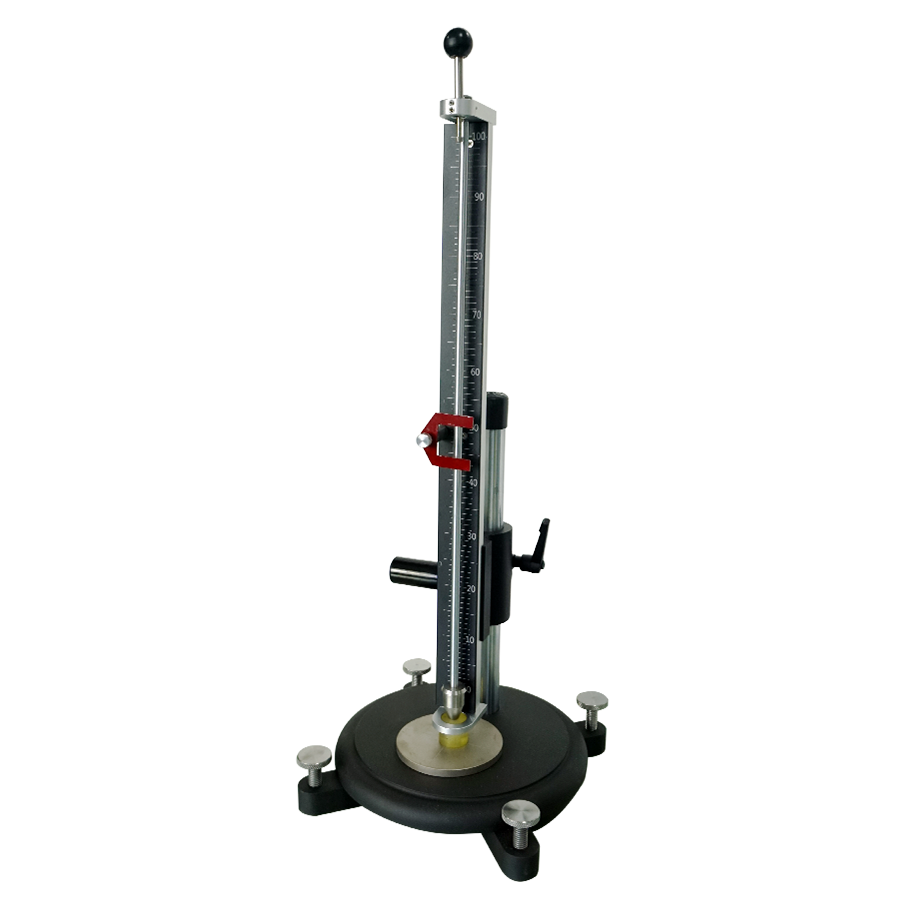

Vertical Rebound Resilience Tester
Confirm to ASTM-D2632 Standard

QC-638 is based on free vertical drop hammer test method to test rubber elasticity. The 28 gram of hammer raised to 400mm height and to do impact. Average 4rd, 5th and 6th of impact bound height value which can get rubber elasticity.



Industry:Rubber

Inquiry
Model QC-638
Hammer weight 28 g
Impact height 400 mm
Sample thickness 12.5 mm
Dimension 24 × 16 × 48 cm
Weight 8 kg



Test Video         Teaching material SOP        Test Case
