Product Serial : QC-631

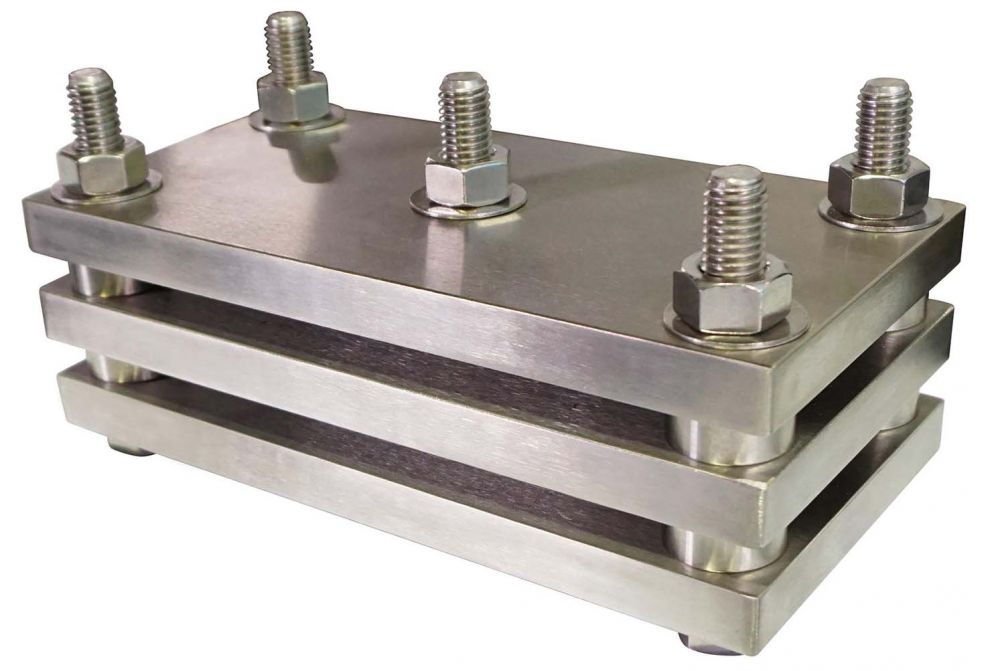

Compression & Deformation Tester
Confirm to ASTM-D395, JIS K6262, GB/T 7759, ISO 815 Standard

 It is use static state way to testing rubber under constant compression and exerting heat condition to check the permanently deformation rate of the material. This test needs to collocate with oven and Thickness Gauge.



Industry: Rubber

Inquiry
Model QC-631 QC-631A
Compression Plate surface Increase the flatness of the test by grinding Roughness below 0.25um
Compression plate 3 pcs (two test spaces)
  Material SUS304
The size of Interval ring  1 set(10 pcs) 5.0, 7.62, 8.89, 9.52, 10.16 mm are available (10 interval rings of the same size will be offering for free)
Accessories With 5 pieces of screw bolt and screw nuts
Dimension 20 x 10 x 12 cm
Weight 7kg



Test Video         Teaching material SOP        Test Case

  • QC-605L Oven
