Densimeter

Home / Products / Other / Densimeter
Product Serial : QC-GF-300

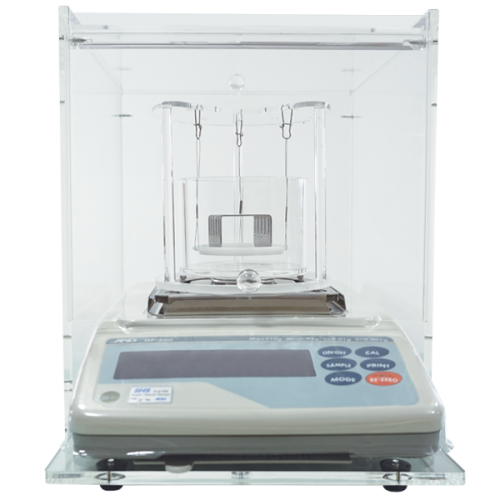

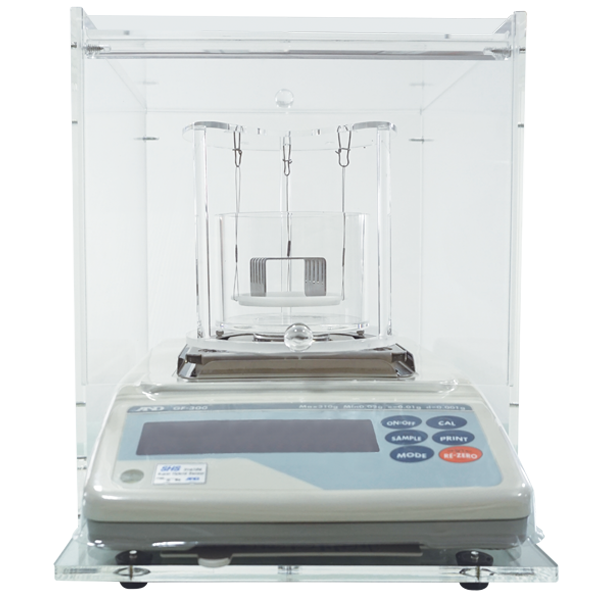

Densimeter
Confirm to ASTM D297-93, ISO 2481 Standard

QC-GF-300 first weighing the sample mass in air, and then weighing the mass in the liquid (water), through built-in program of tester automatically calculate and show the density directly, the appearance of the test specimen is not limited.



Industry: Rubber, Plastic, Metal

Inquiry
Model GF-300
Weighing range 0 ~ 310 g
Minimum weighing value 0.001 g
Repeatability 0.001 g
Stabilization time 1 sec.
Display type Fluorescence（VFD）Display
weighting pan Φ128 mm
Temp. Compensation coefficient ±2 ppm/℃
Density display Decimal three digits
Accessory ※Density shelf on set
※Density test software can directly read density value
※Windproof cover one set
Power 110V，6A
Dimension 44 × 32 × 27 cm
Weight 5.4 kg



Test Video         Teaching material SOP        Test Case
