Product Serial : QC-9130(A)

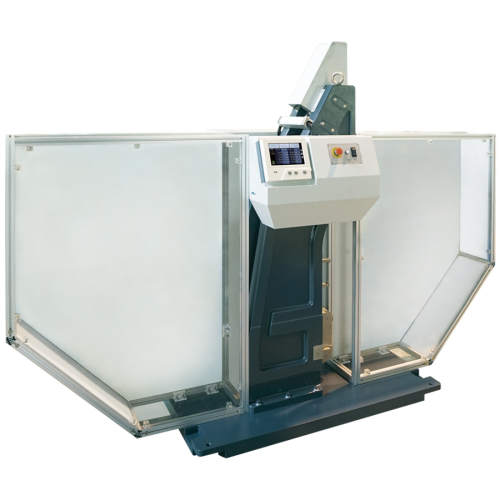

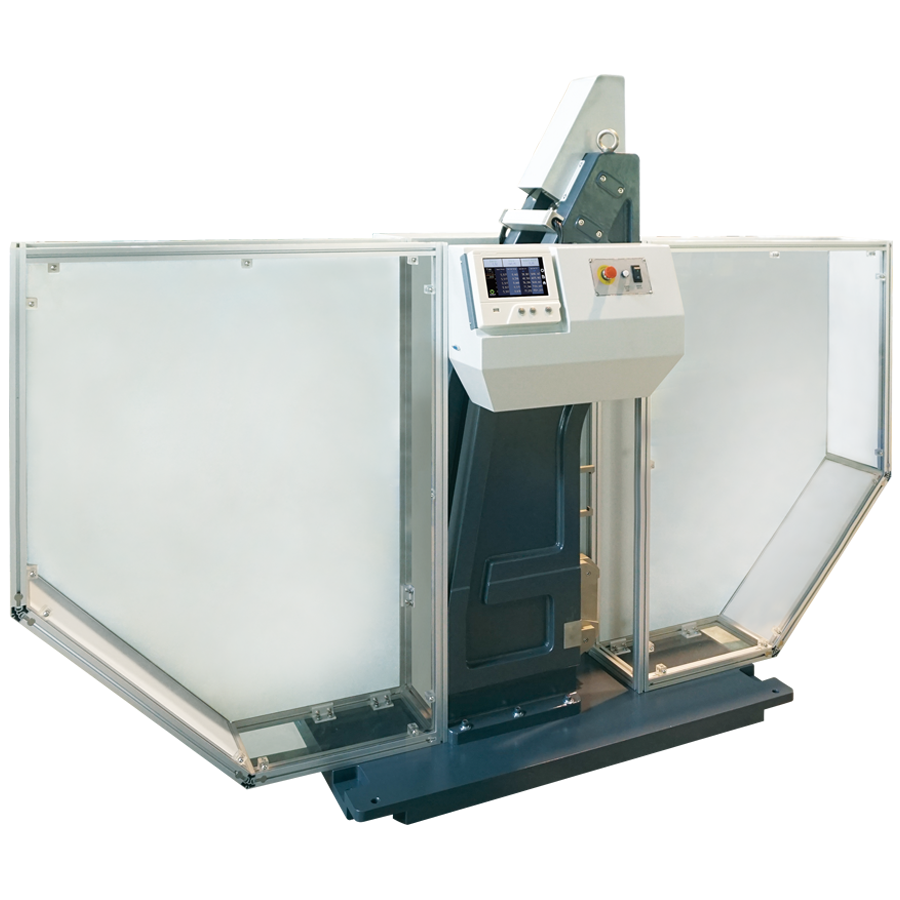

Digital Metal Impact Tester
Confirm to EN 10045, ASTM E 23-00a, GB T229 Standard

QC-9130(A) is suitable for metal material of large capacity impact tester. It used hammer once of swing impact specimen which broken was based on hammer of initial angle and after strike of angle to get hammer of loss energy which is material of impact energy value. This tester of feature is high precision, easy operation and the hammer will be auto return after finish impact. The test result can get from digital display and no need to complicate to calculation



Industry : Metal

Inquiry
Model QC-913A QC-9130
Capacity 100J、150J 300J
Type CHARPY TYPE
Speed Impact speed：5 m/sec ± 10％
Best testing range The hammer capacity within20 ~ 80%
Machine displays
of angle		 0.05 °
Impact angle 150°
Energy unit J、J/mm、J/cm、J/mm²、J/cm²、KJ/m²、Kg-cm、Kg-cm/mm、Kg-cm/cm、ft-lb、ft-lb/in、ft-lb/in²
Power Single phase 220 V
Dimension 188 × 65 × 178 cm 210 × 95 × 208 cm
Weight 710 kg 900kg
