Product Serial : QC-641

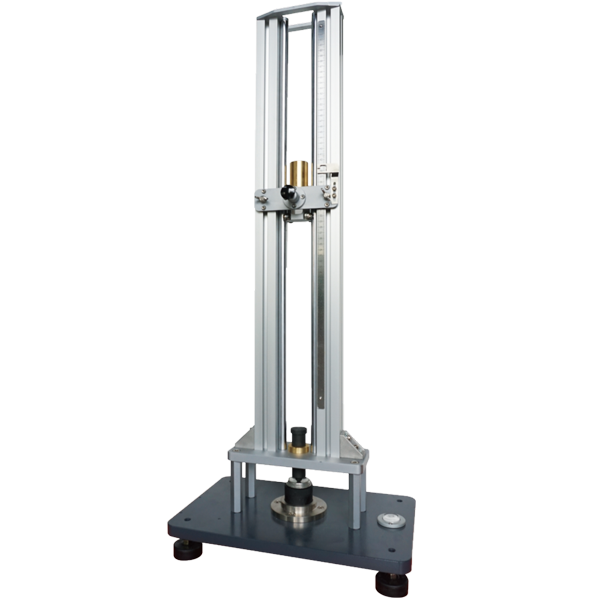

DUPONT Impact Tester
Confirm to JIS-K5400/K5640, ASTM D2794, ISO 6272 Standard

QC-641 DUPONT impact tester is mainly used for testing on paint of adhesion test. The variety of impact head and specimen station can choice. Can be set 300g, 500g, 1000g of different weight of weight to fix on the height and falls freedom. It can through different impact head on specimen of surface and observe the specimen surface on appearance after impacted and to do evaluation. To do more than three specimens continuously and after placed one hour to observe the paint has crack or not.



Industry: Plastic

Inquiry
Model QC-641
Impact height 50 ~ 500 mm
Impact weight 300g、500g each(Can do 300g, 500g, 800g, 1000g four capacities tests
Impact head
fixed base		 Radius 1/2"、1/4"、3/16"、1/8" each
Dimension 42×26×100 cm
Weight 45 kg



Test Video         Teaching material SOP        Test Case
