Super Daylight

Home / Products / Textile / Super Daylight
Product Serial : QC-701A

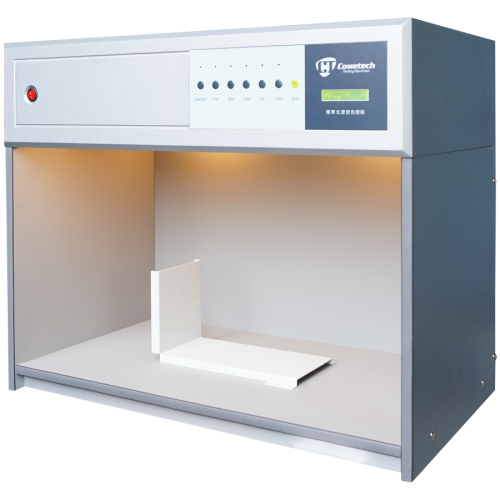

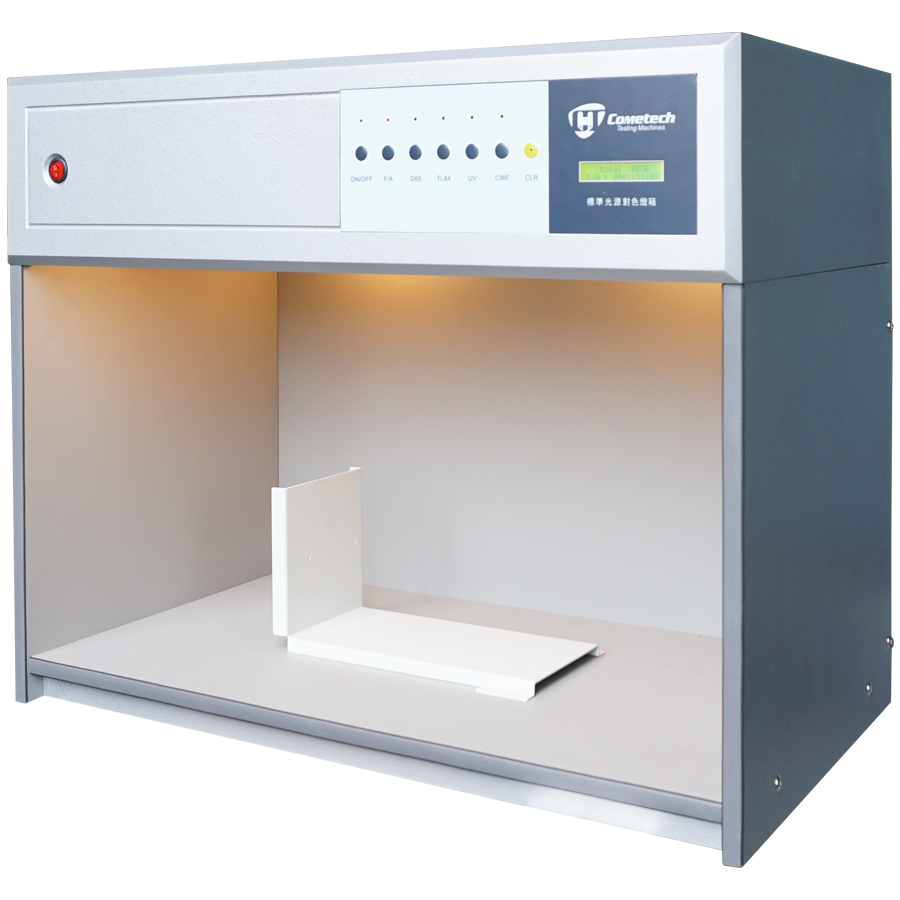

Super Daylight
Confirm to JIS-Z8724, CIE-30 Standard

QC-701A standard super daylight can simulate various illumination conditions; provide an objective environment for users that can proceed with specimens color comparison.



Color’s determination on different light source environments has various color effects, QC-701 SUPER LIGHT provide D65 standard artificial daylight, UV fluorescent reaction light source, A yellow light source, etc. main and common light source environments. (Other light source also can be selected), this tester can accumulate light source using time that can be as light tube lifetime basis.

Industry: Textile, Printing, plastic, varnish

Inner chamber 67×37×35cm
Light source

Light

Application Color temperature Watt Specification
D65
International Standard Artificial Daylight 6500K 2pc×18W TL-D 90 De LUXE 18W/965
TL84
Europe, Japan light source 4000K 2pc ×18W T.D 18W/840 COOL WHITE
CWF
Cool White Fluorescent. USA Shop Light Source 4200K 2pc ×20W F20T12-CW COOL WHITE
A
Sun-setting Light.
Yellow Light Source
2700K 4pc ×40W 40W
Color comparison reference light source
UV
Ultraviolet Lamp fluorescent reaction 1pc ×20W G.E. 20W
Control method Complete-electronic type starter with high frequency, Users don’t have to wait for start.
Timer 5 Sets. For record the using of each light.
Feature 1. Often turn and off light easily cause consume. Suggestion: Replacing light tube when reach 1000 hours.
2. Inner side of chamber painted with Optical-Flat painting. Easy to read.
Dimension 72×42×58cm
Weight 25kg
