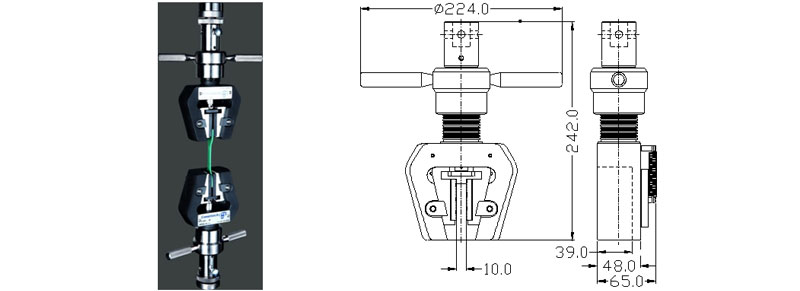

GR-F010 Wedge Grip
Capacity 10kN
Jaw face width 30mm
Mini. load cell 1kN
Temperature limits -10~200℃
Weight 5375g

F01A/B is suitable to test metal sheet, metal wire, plastic and high tension material.
F01F/G is suitable to test metal rod, plastic rod, and rod or tube material.

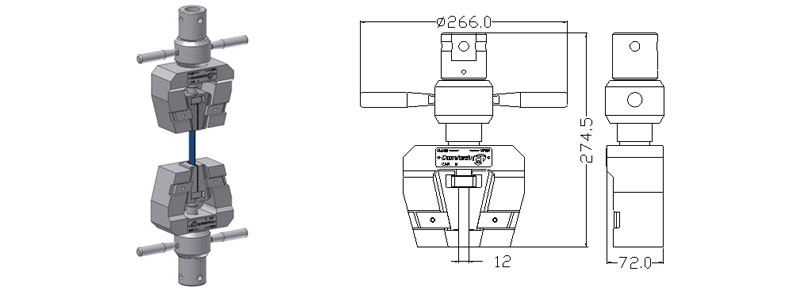

GR-F020 Wedge Grip
Capacity 50kN
Jaw face width 40mm
Mini. load cell 5kN
Temperature limits -10~200℃
Weight 10163g

F02A/B is suitable to test rigid wire and board.
F02F/G is suitable to test metal rod, plastic rod, and rod or tube material.

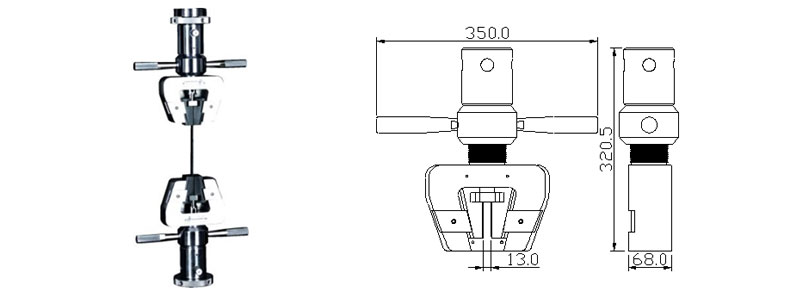

GR-F030 Wedge Grip
Capacity 100kN
Jaw face width 46mm
Mini. load cell 10kN
Temperature limits -10~200℃
Weight 17522g

F03A/B/C is suitable to test wire and board.
F03F/G is suitable to test metal rod, plastic rod, and rod or tube material.

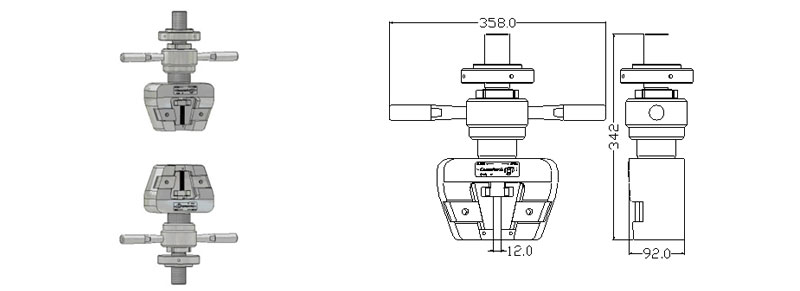

GR-F040 Wedge Grip
Capacity 200kN
Jaw face width 46mm
Mini. load cell 20kN
Temperature limits -30~200℃
Weight 19150g

F04A/B/C is suitable to test wire and board.
F04F/G is suitable to test metal rod, plastic rod, and rod or tube material.

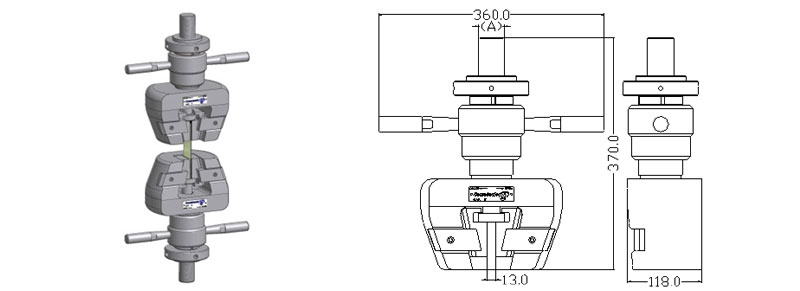

GR-F050 Wedge Grip
Capacity 300kN
Jaw face width 50mm
Mini. load cell 20kN
Temperature limits 0~100℃
Weight 21000g

F05A/B is suitable to test metal wire and metal board.
F05F/G is suitable to test metal rod and plastic rod.

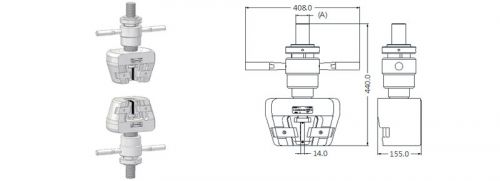

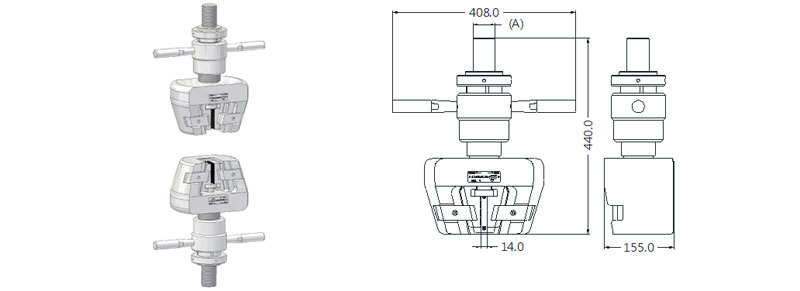

GR-F060 Wedge Grip
Capacity 500kN
Jaw face width 50mm
Mini. load cell 30kN
Temperature limits 0~100℃
Weight 54000g

F06A/B is suitable to test metal wire and metal board.
F06F/G is suitable to test metal rod and plastic rod.

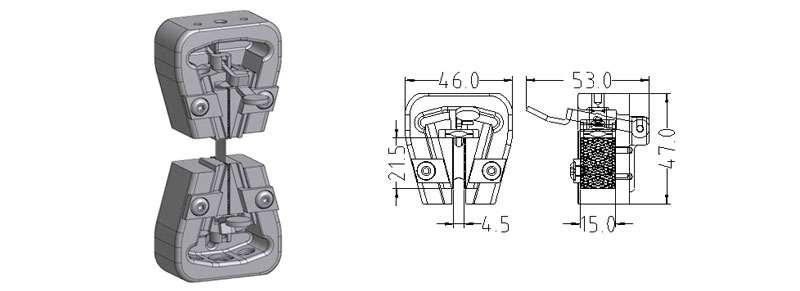

GR-F130 Wedge Grip
Capacity 2N
Jaw face width 15mm
Grip width 1-4mm
Mini. load cell 20N
Temperature limits 0~100℃
Weight 264g

Suitable to test ductile plastic, ductile metal sheet and ductile metal rod.

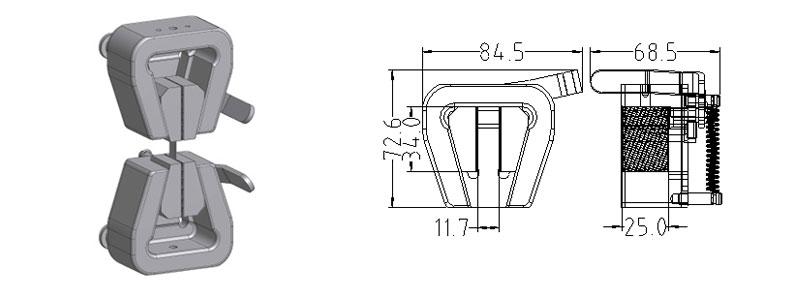

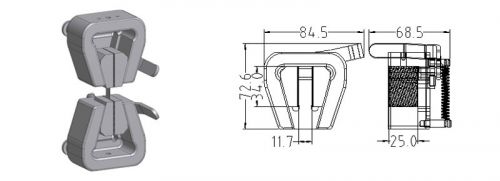

GR-F140 Wedge Grip
Capacity 5kN
Jaw face width 25mm
Grip width 1-10mm
Mini. load cell 50N
Temperature limits 0~100℃
Weight 976g

Suitable to test ductile plastic, ductile metal sheet and ductile metal rod.

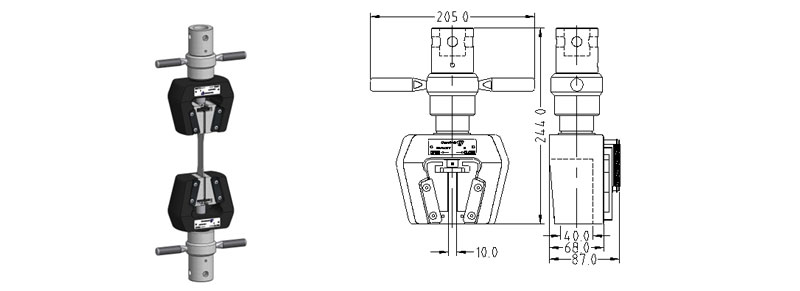

GR-F220 Wedge Grip
Capacity 25kN
Jaw face width 40mm
Mini. load cell 2kN
Temperature limits 0~100℃
Weight 8207g

F22A/B Suitable to test metal sheet, metal wire, plastic and high tension material.
F22F Suitable to test metal rod, plastic rod, and rod or tube material.
