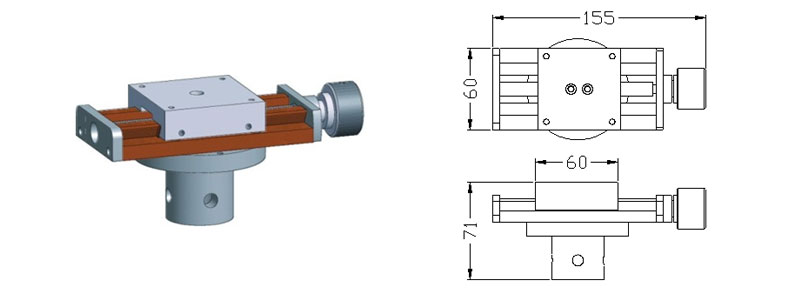

GR-I010 Uniaxial Grip
| Platen area | 60x60mm |
|---|---|
| Range of movement | ±25mm |
| Temperature limits | 0~200℃ |
| Weight | 1463g |
Install on a platform can make X-shift.

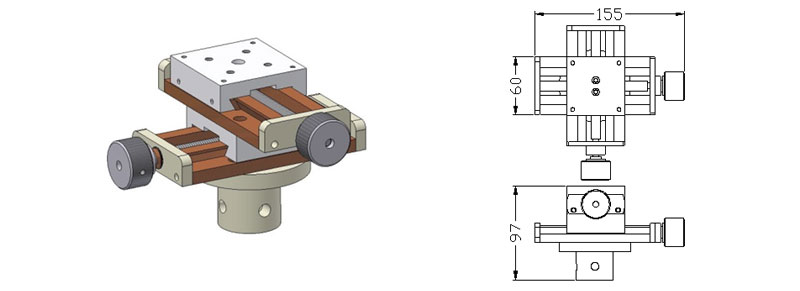

GR-I01A Biaxial Grips
| Platen area | 60x60mm |
|---|---|
| Range of movement | ±25mm |
| Temperature limits | 0~100℃ |
| Weight | 2452g |
Install on a platform which can adjust X and Y shift.

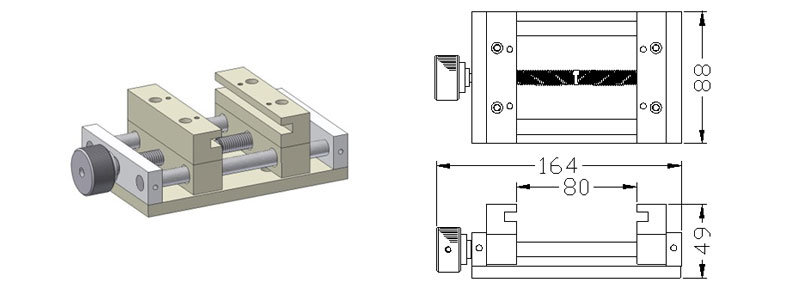

GR-I020 Adjusted Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 88mm |
| Specimen thickness | 80mm |
| Temperature limits | 0~100℃ |
| Weight | 2256g |
Install on a platform which can adjust X and Y shift.

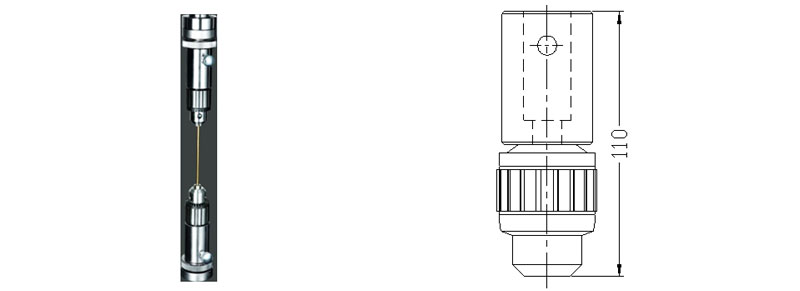

GR-I030 Screwed Collect Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 1~9mm |
| Mini. load cell | 100N |
| Temperature limits | 0~100℃ |
| Weight | 621g |
Suitable to test rod, small diameter material.
