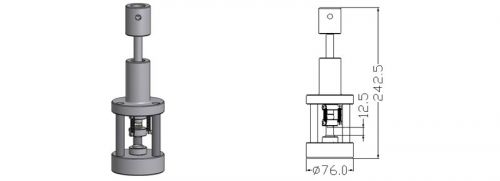

GR-N010 Grip For Glass Compression
Capacity 1kN
Specimen thickness 18x18mm
Upper ring crush

Ø9.5

Lower ring crush Ø15.5
Mini. load cell 100N
Temperature limits 0~100℃
Weight 2235g

Applicable on glass specimen test.

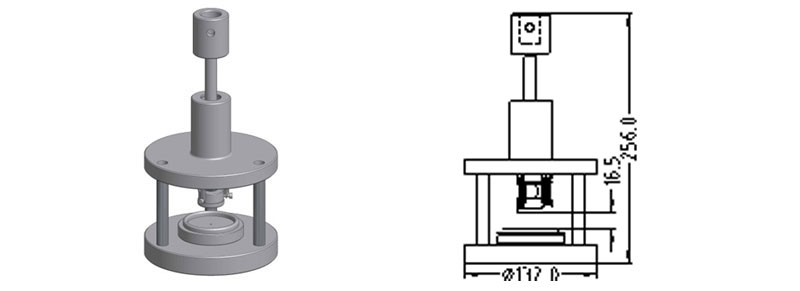

GR-N01A Ring Crush Grip For Glass Bending
Capacity 1kN
Specimen thickness 55x55mm
Upper ring crush

Ø22.86mm

Lower ring crush Ø52.07mm
Mini. load cell 200N
Temperature limits 0~100℃
Weight 5420.5g

Applicable on glass specimen test.

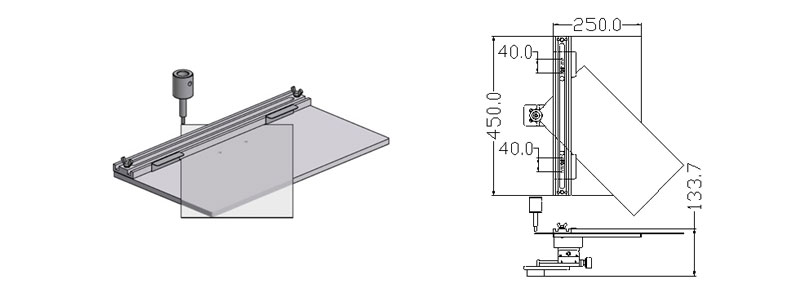

GR-N020 Ring Crush Grip For Glass Compression
Capacity 2kN
Jaw face width 400x200mm
Specimen thickness 0.6mm
Mini. load cell 100N
Temperature limits 0~200℃
Weight 7202g

Applicable on glass angle bending, flat compression test.
