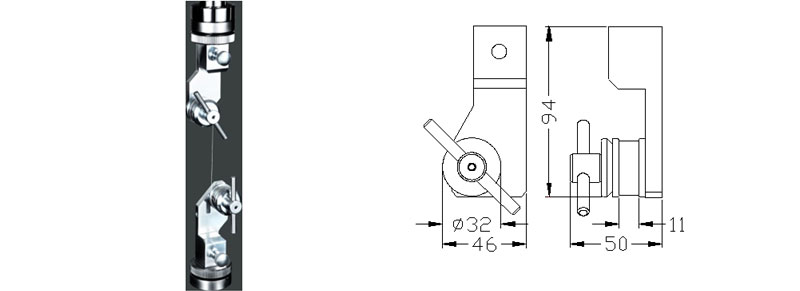

GR-E010 Yarn Grip
Capacity 200N
Core diameter size Ø0.1〜Ø1mm
Mini. load cell 20N
Temperature limits -10~200℃
Weight 432g

Suitable to test yarn,fiber and thin wire.

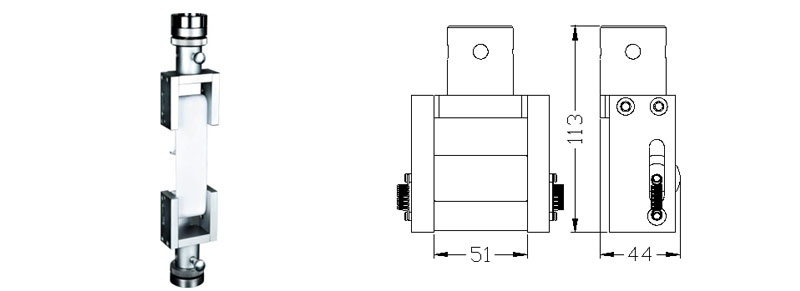

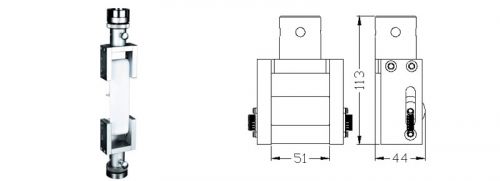

GR-E020 Textile Grip
Capacity 2kN
Jaw face width 51mm
Core diameter size 0.2~3mm
Mini. load cell 200N
Temperature limits 0~100℃
Weight 1040g

Suitable to test rope, textile webbing and plastic sheet.

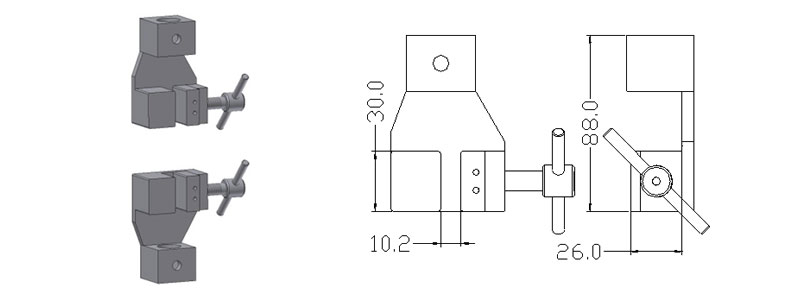

GR-E030 Plane Grip
Capacity 500N
Jaw face width 26mm
Specimen thickness 0.1~2mm
Mini. load cell 50N
Temperature limits -10~200℃
Weight 585g

Suitable to test yarn, metal wire and flat sample.

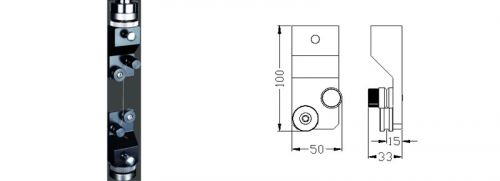

GR-E040 Small Circular Bollard Grip
Capacity 200N
Core diameter size Ø0.5〜Ø1mm
Mini. load cell 20N
Temperature limits -10~200℃
Weight 214g

Suitable to test yarn and thin wire.

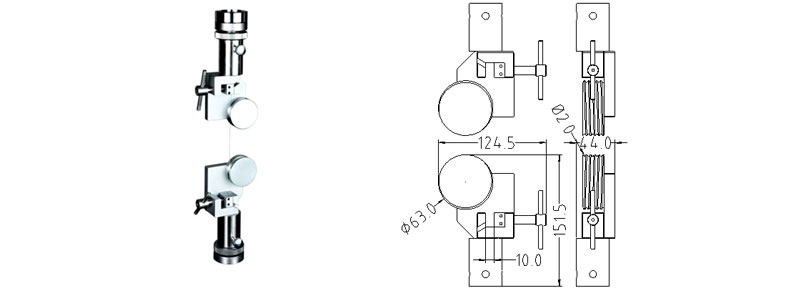

GR-E050 Large Circular Bollard Grip
Capacity 2kN
Core diameter size Ø0.5〜Ø2mm
Mini. load cell 100N
Temperature limits -10~200℃
Weight 1400g

Suitable to test yarn, metal wire and nylon wire.

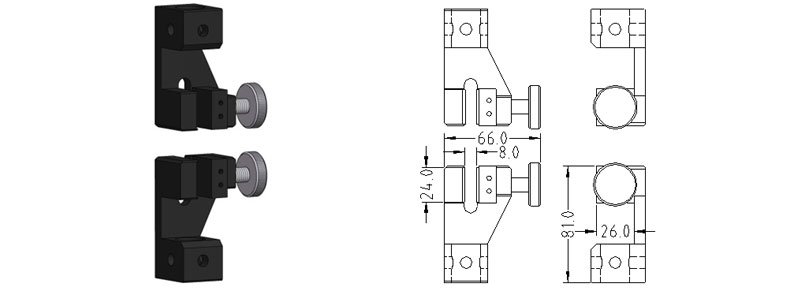

GR-E060 Plane Grip
Capacity 200N
Jaw face width 26mm
Specimen thickness 0.1~3mm
Mini. load cell 20N
Temperature limits 0~100℃
Weight 170g

Suitable to test thin wire, film and flat sheet such as paper.

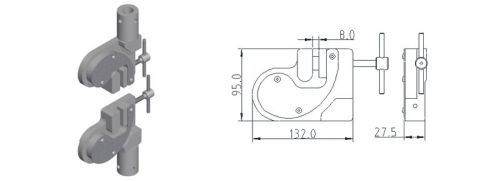

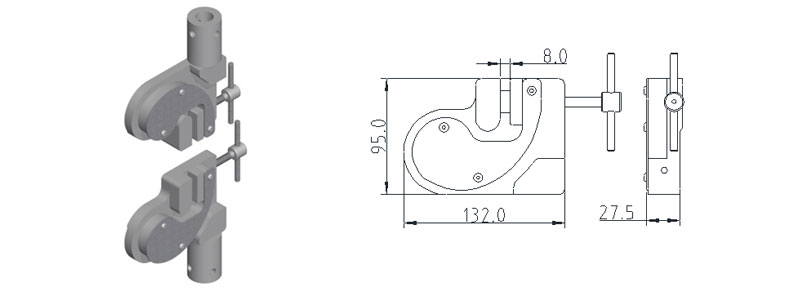

GR-E080 Large Circular Bollard Grip
Capacity 5kN
Jaw face width 15mm
Core diameter size Ø0.1〜Ø4.0mm
Mini. load cell 200N
Temperature limits 0~200℃
Weight 1960g

Suitable to test yarn, nylon wire and thin wire.

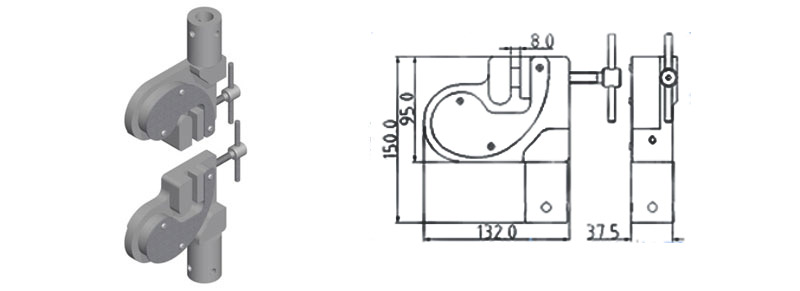

GR-E08A Plane Grips
Capacity 5kN
Jaw face width 25mm
Core diameter size Ø0.1〜Ø4.0mm
Mini. load cell 200N
Temperature limits 0~200℃
Weight 2050g

Suitable to test yarn, nylon wire and thin wire.
