3 Point Bend, 4 Point Flexural

Home / Products / Grips / Series C 3 Point Bend/Flexure

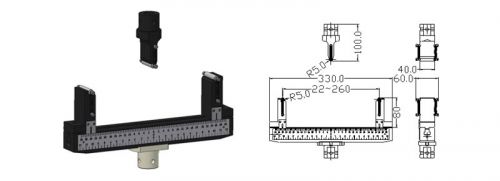

GR-C010 3 point bend/flexure
Capacity 10kN
Jaw face width 40mm
Span 22~260mm
Mini. load cell 200N
Temperature limits 0~200℃
Up Weight 801g
Down Weight 5342g

Suitable to test metal, wood, glass and rigid plastic.

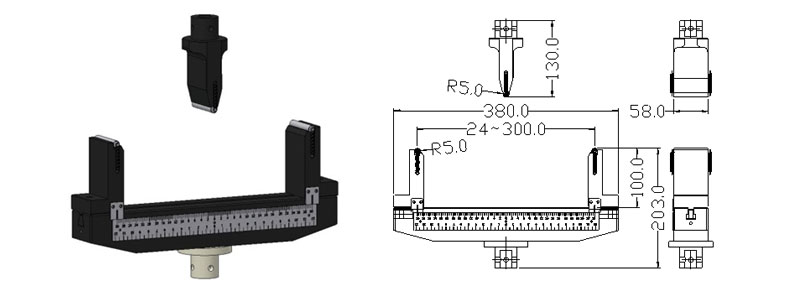

GR-C020 3 point bend/flexure
Capacity 20kN
Jaw face width 58mm
Span 24~300mm
Mini. load cell 500N
Temperature limits 0~100℃
Up Weight 1960g
Down Weight 11510g

Suitable to test metal, wood, glass and rigid plastic.

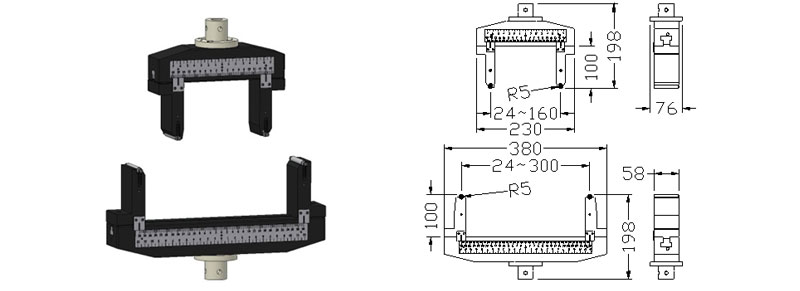

GR-C030 4 point bend/flexure
Capacity 20kN
Jaw face width 24~160mm
Upper Span 24~300mm
Lower Span 58mm
Mini. load cell 1kN
Temperature limits 0~200℃
Up Weight 7800g
Down Weight 11510g

Suitable to test metal, wood, glass and rigid plastic.

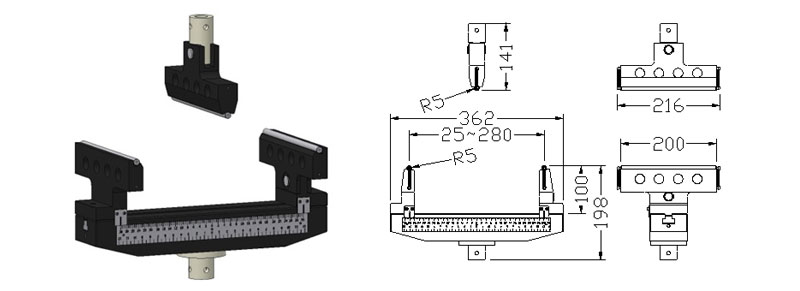

GR-C040 3 point bend/flexure
Capacity 10kN
Jaw face width 200mm
Specimen thickness 25~280mm
Mini. load cell 1kN
Temperature limits 0~200℃
Up Weight 2774g
Down Weight 16622g

Suitable to test big size specimen.
