Elasticity Grip/Narrow Grip/Button Grip

Home / Products / Grips / Series L Elasticity Grip

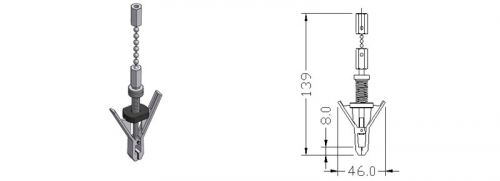

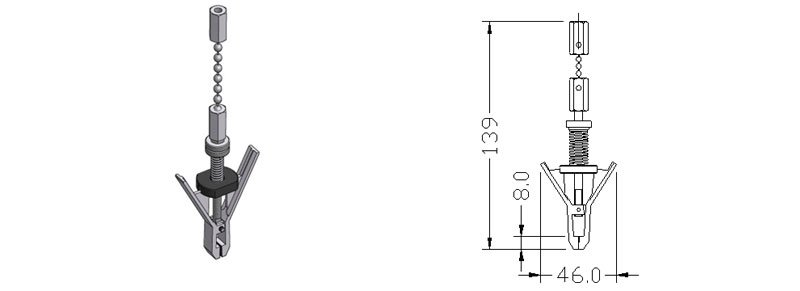

GR-L010 Elasticity Grip
Capacity 10N
Jaw face width 9mm
Specimen thickness 0.1~2mm
Mini. load cell 10N
Temperature limits 0~100℃
Weight 35g

Suitable to test ductile sheet or release paper.

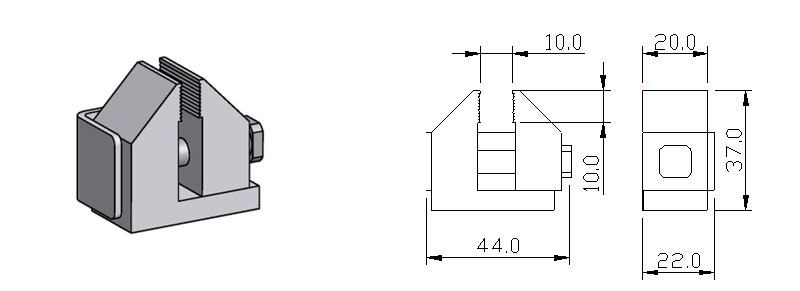

GR-L020 Narrow Grip
Capacity 10N
Jaw face width 20mm
Specimen thickness 0.1~9mm
Mini. load cell 10N
Temperature limits 0~100℃
Weight 123g

Suitable to test plastic and paper.

GR-L030 Button Grip
Capacity 300N
Wire diameter ψ5~ψ15mm
Mini. load cell 200N
Temperature limits 0~200℃
Weight 4393g

Suitable to test bottom pulling.
