Compression Platens/Self-Aligning Compressed Platen/ Spring Platen/ Gig for Return to Zero

Home / Products / Grips / Series G Compression Platen

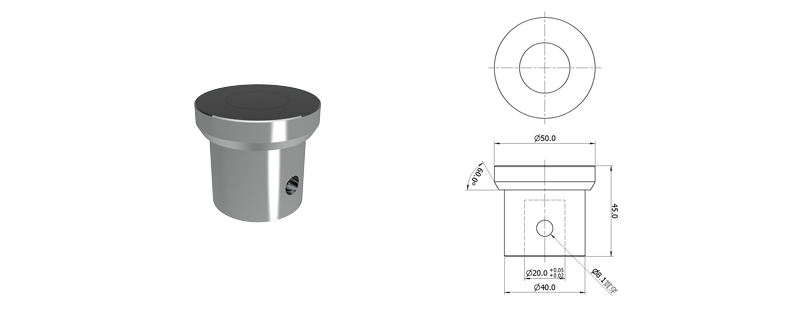

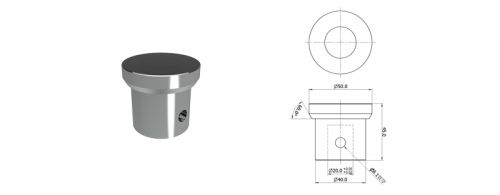

GR-G010 Compression Platens
Capacity 10kN
Max. diameter 50mm
Mini. load cell 50N
Temperature limits -70~100℃
Weight 400g

Suitable to test can and brittle material.

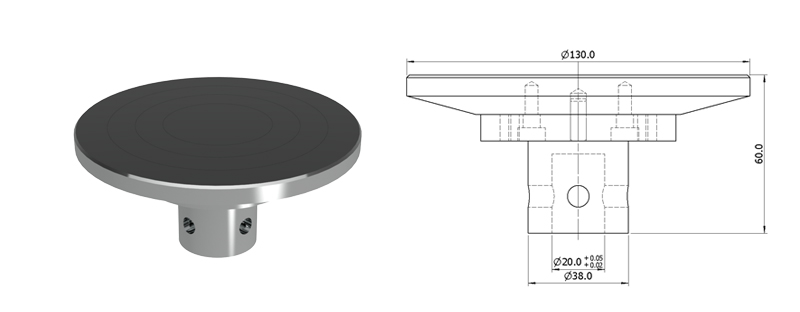

GR-G01A Compression Platens
Capacity 20kN
Max. diameter 130mm
Mini. load cell 200N
Temperature limits -70~200℃
Weight 1825g

Suitable to test can and brittle material.

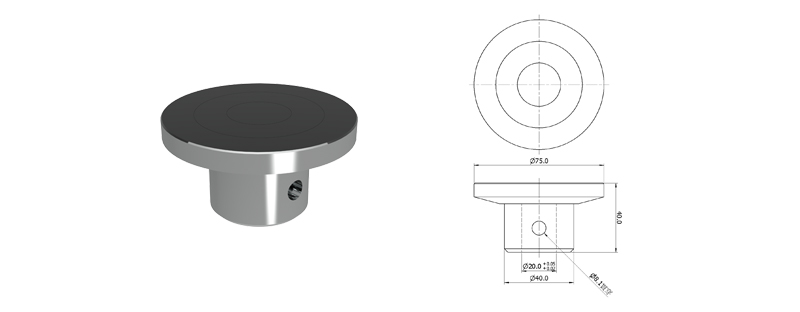

GR-G01B Compression Platens
Capacity 20kN
Max. diameter 75mm
Mini. load cell 100N
Temperature limits -70~200℃
Weight 717g

Suitable to test can and brittle material.

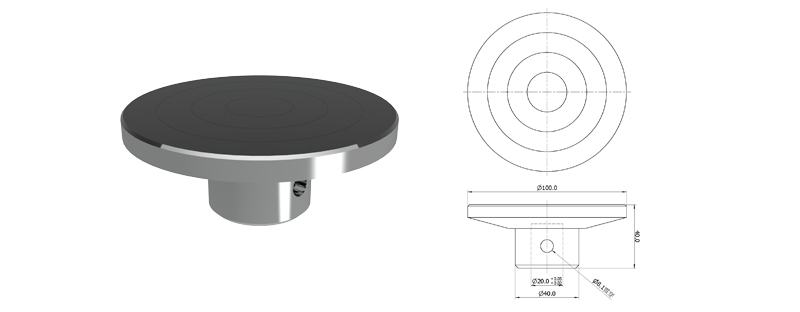

GR-G01C Compression Platens
Capacity 20kN
Max. diameter 100mm
Mini. load cell 200N
Temperature limits -70~200℃
Weight 1182g

Suitable to test can and brittle material.

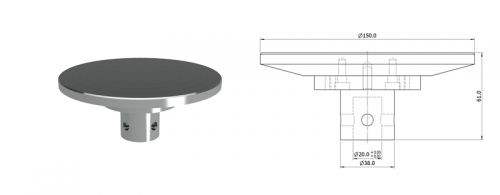

GR-G01D Compression Platens
Capacity 20kN
Max. diameter 150mm
Mini. load cell 500N
Temperature limits -70~200℃
Weight 2403g

Suitable to test can and brittle material.

GR-G020 Compression Platens
Capacity 5kN
Max. diameter 50mm
Temperature limits -70~100℃
Weight 1096g

Suitable to test spring and foam.

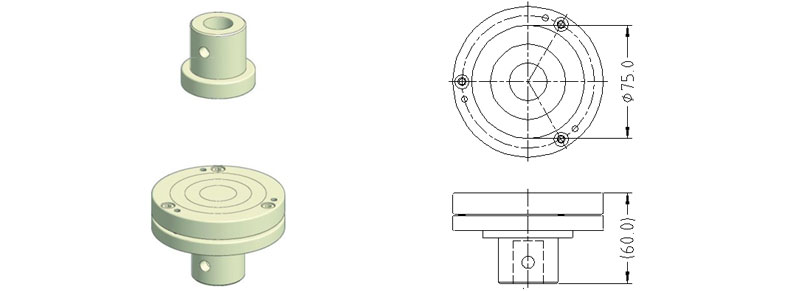

GR-G02B Compression Platens
Capacity 5kN
Max. diameter 75mm
Temperature limits -70~200℃
Weight 1772g

Suitable to test spring and foam.

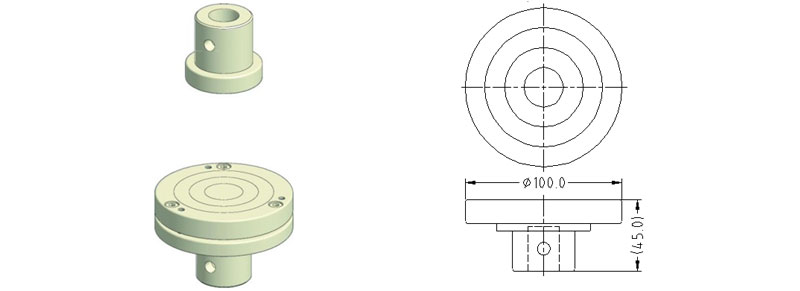

GR-G02C Compression Platens
Capacity 10kN
Max. diameter 100mm
Temperature limits -70~200℃
Weight 2685g

Suitable to test spring and foam.

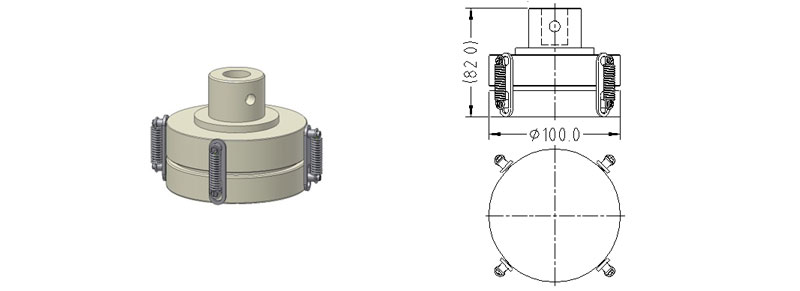

GR-G03C Self-aligning Compressed Platen
Capacity 20kN
Max. diameter 100mm
Mini. load cell 500N
Temperature limits -10~200℃
Weight 3269g

Suitable to test concrete.

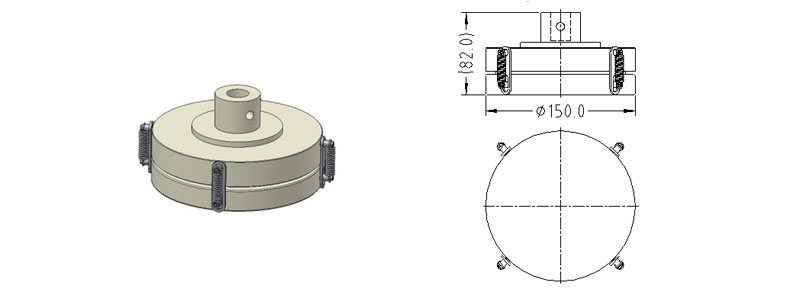

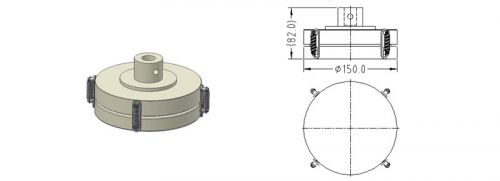

GR-G03D Self-aligning Compressed Platen
Capacity 20kN
Max. diameter 150mm
Mini. load cell 500N
Temperature limits -10~100℃
Weight 3269g

Suitable to test concrete.

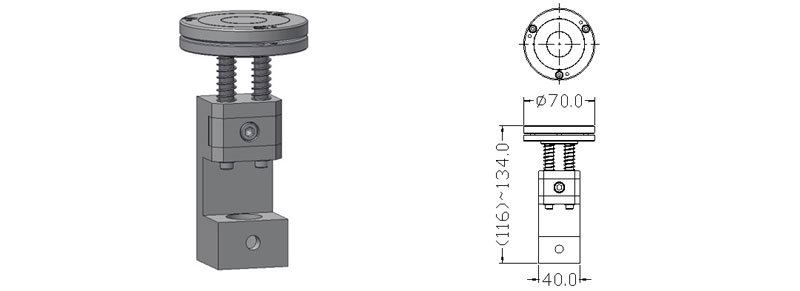

GR-G040 Spring Platen
Capacity 100N
Max. diameter 30mm
Temperature limits -10~100℃
Weight 850g

Suitable to test spring and foam.

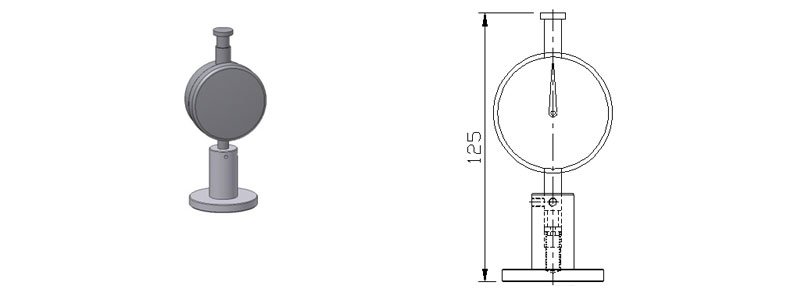

GR-G04A Gig for return to zero
Rang of application 105~125mm
Effective stroke 20mm
Temperature limits 0~100℃
Weight 192g

Suitable to test zero jig for spring compression plate.
