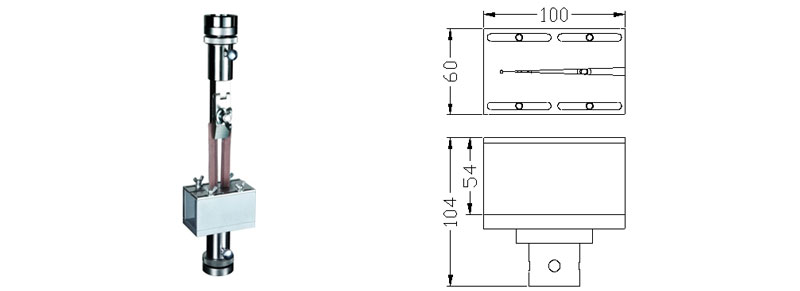

GR-K010 Zipper Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 50mm |
| Specimen thickness | 0.5~4mm |
| Mini. load cell | 50N |
| Temperature limits | -30~200℃ |
| Weight | 1727g |
| Standard | ASTM D2061 |
Suitable to test zipper.

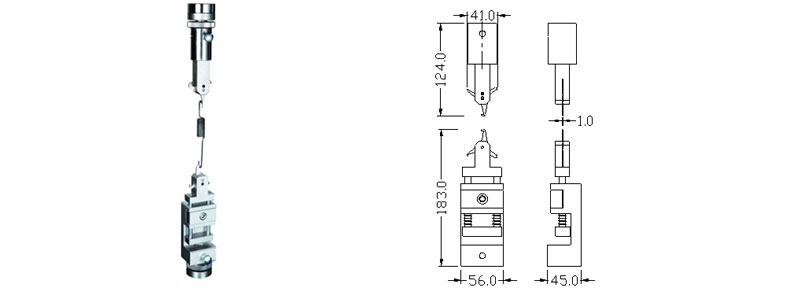

GR-K020 Spring Hook Grip
| Capacity | 200N |
|---|---|
| Wire diameter range | Ø0.5~Ø2.5mm |
| Mini. load cell | 20N |
| Temperature limits | -10~200℃ |
| Up Weight | 470g |
| Down weight | 1748g |
Suitable to test spring.

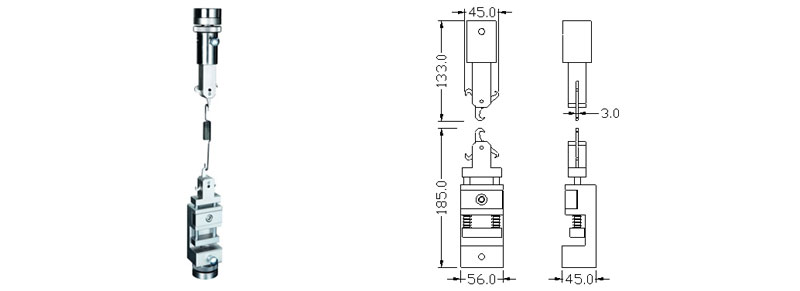

GR-K02A Spring Hook Grip
| Capacity | 200N |
|---|---|
| Wire diameter range | Ø3.0~Ø6.0mm |
| Mini. load cell | 50N |
| Temperature limits | -10~200℃ |
| Up Weight | 620g |
| Down Weight | 1804g |
Suitable to test spring.

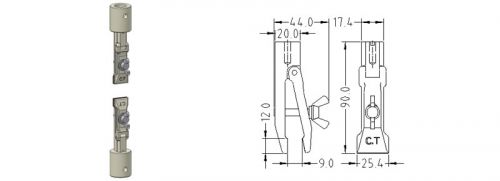

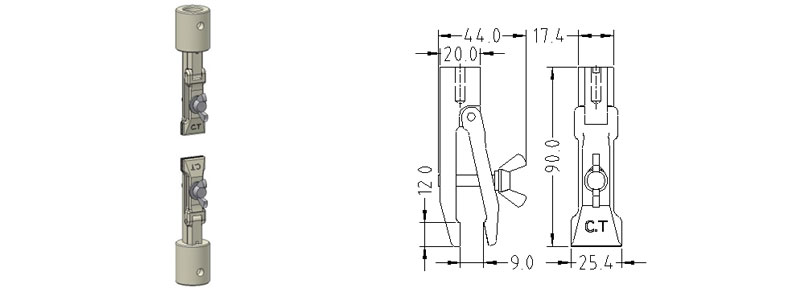

GR-K030 Big Narrow Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 25.4mm |
| Specimen thickness | 0.2~5mm |
| Mini. load cell | 20N |
| Temperature limits | -10~200℃ |
| Weight | 195g |
Suitable to test ductile sheet or small size specimen.

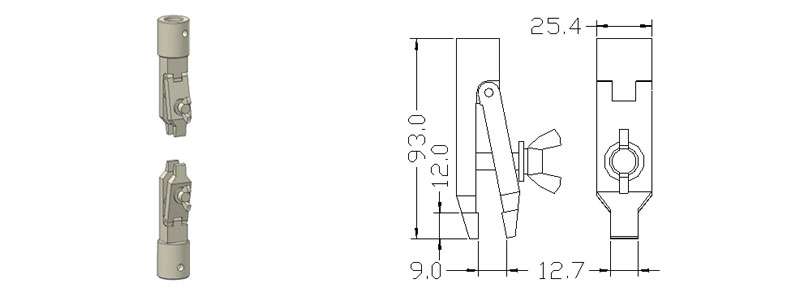

GR-K03A Large Pinch Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 12.7mm |
| Specimen thickness | 0.2~5mm |
| Mini. load cell | 20N |
| Temperature limits | 0~100℃ |
| Weight | 700g |
Suitable to test ductile sheet or small size specimen.

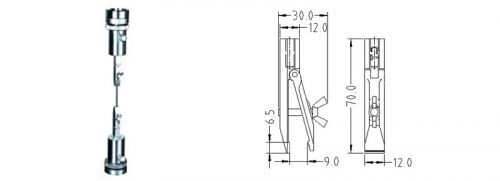

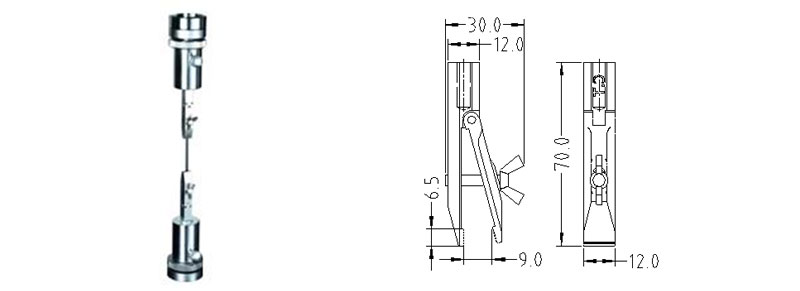

GR-K03B Pinch Grip
| Capacity | 200N |
|---|---|
| Jaw face width | 0.2~3mm |
| Specimen thickness | 12mm |
| Mini. load cell | 10N |
| Temperature limits | -10~200℃ |
| Weight | 54g |
Suitable to test ductile sheet or small size specimen.

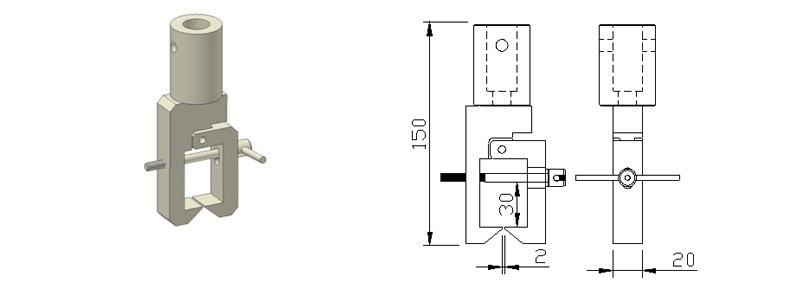

GR-K040 Hook Grip
| Capacity | 500N |
|---|---|
| Jaw face width | 20mm |
| Specimen thickness | 0.2~3mm |
| Mini. load cell | 50N |
| Temperature limits | 0~100℃ |
| Weight | 827g |
Suitable to test terminal connector pull test.
