QC-117 Coefficient of Friction Tester, QC-117A Motor Coefficient of Friction Tester

Home / Products / Package / Coefficient of Friction Tester, Motor Coefficient of Friction Tester

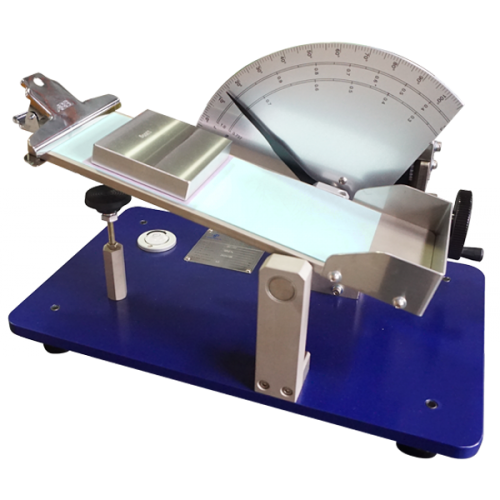

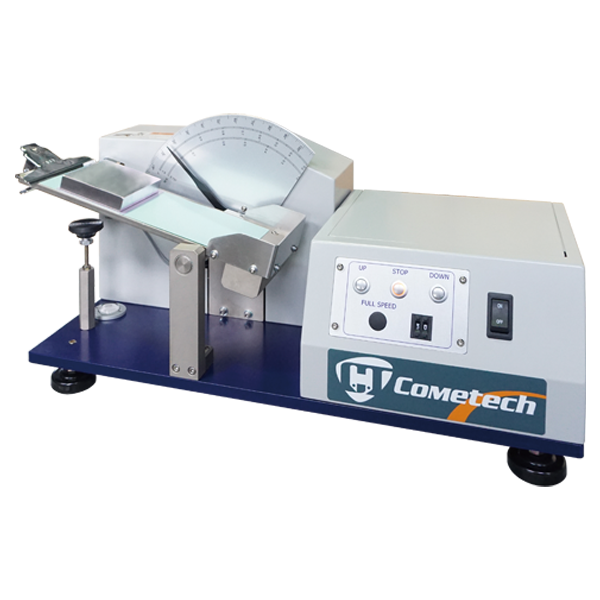

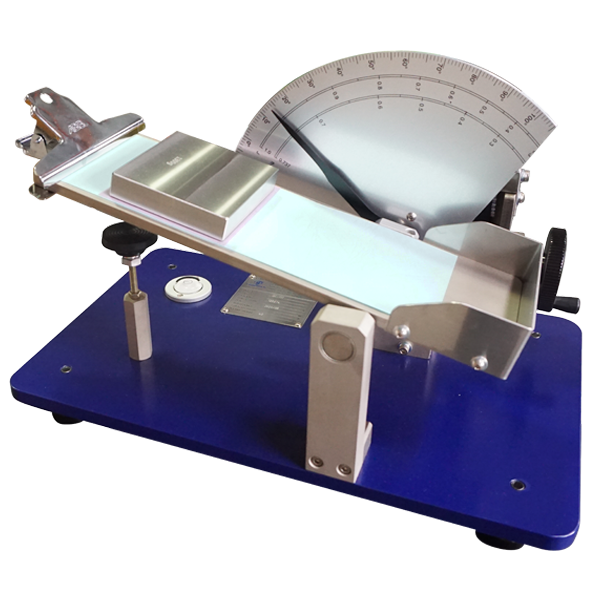

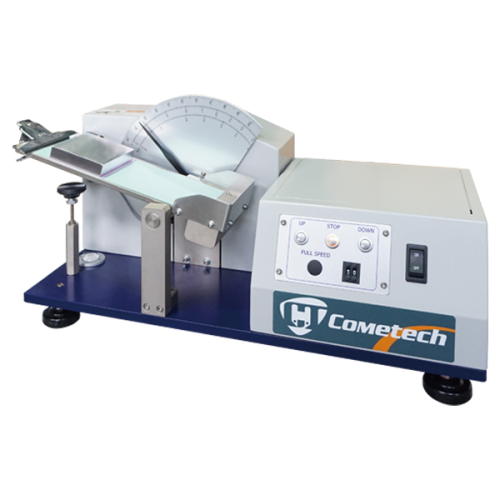

Product Serial : QC-117 & QC-117A
Coefficient of Friction Tester, Motor Coefficient of Friction Tester
Confirm to TAPPI T-815, ASTM D202 Standard

QC-117 & QC-117A Put specimen on the platform, and then put dead weight on the top of specimen according to standard requirement. Let platform angle goes up until the deadweight slides down. Get the tan value from initial slide angle. The tan value represents surface static friction coefficient. Testers also have motor type with angle steadily go up and automatically stop function



Industry:Paper

Model QC-117 QC-117A
Type manual motor
Specimen Size 120×300mm(Max) 120x300mm(Max)
Weight size φ50×45(around 700g); φ50×45(around 700g);
(Spec can be indicated) (Spec can be indicated)
Revolving number Rotation 4.5 angle -------------
Speed manual 1.5 angle/sec (adjusted)
Stop way manual Auto response stop
(Spec can be indicated) Big angle plate each 1 angle Big angle plate each 1 angle
Test angle 0~45 angle 0~60 angle


Test Video         Teaching material SOP        Test Case
