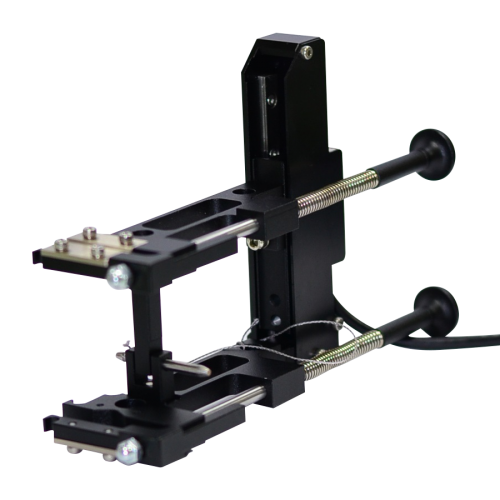

Short Extensometer

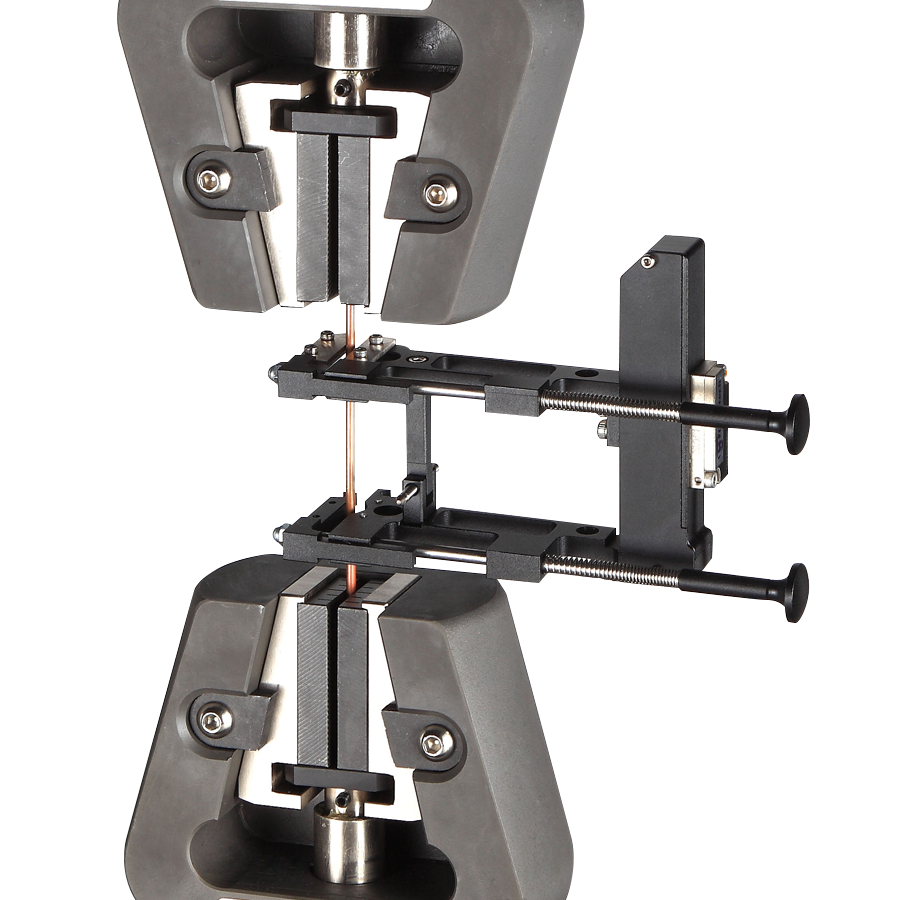

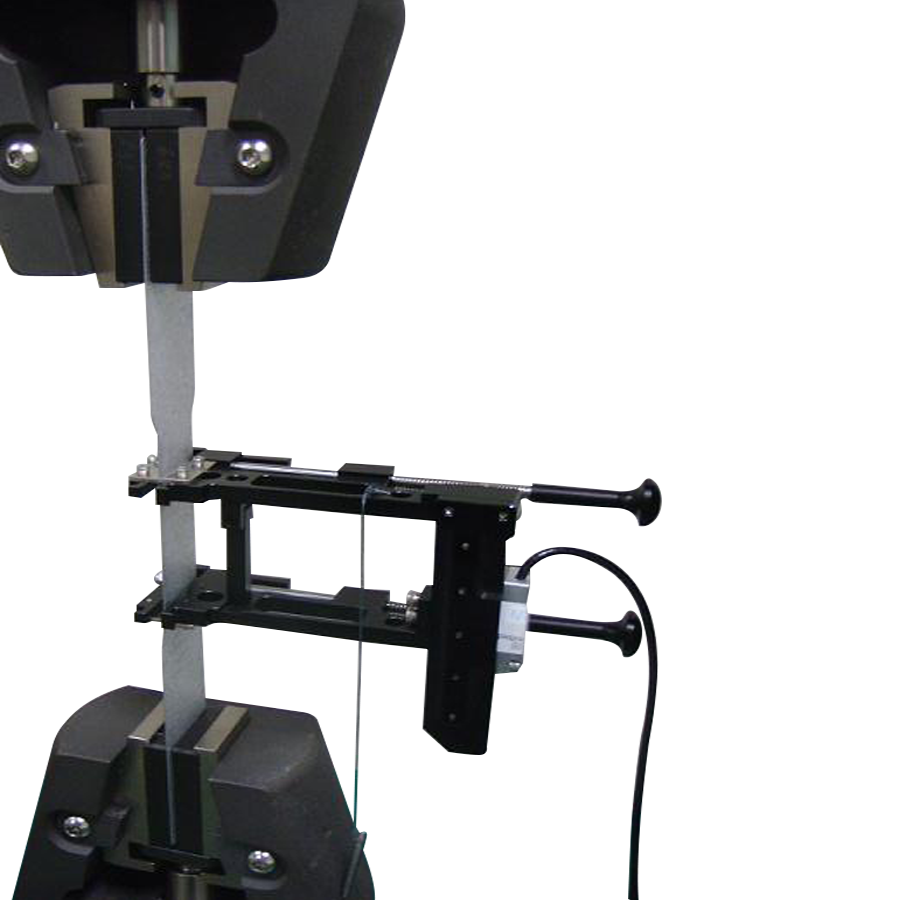

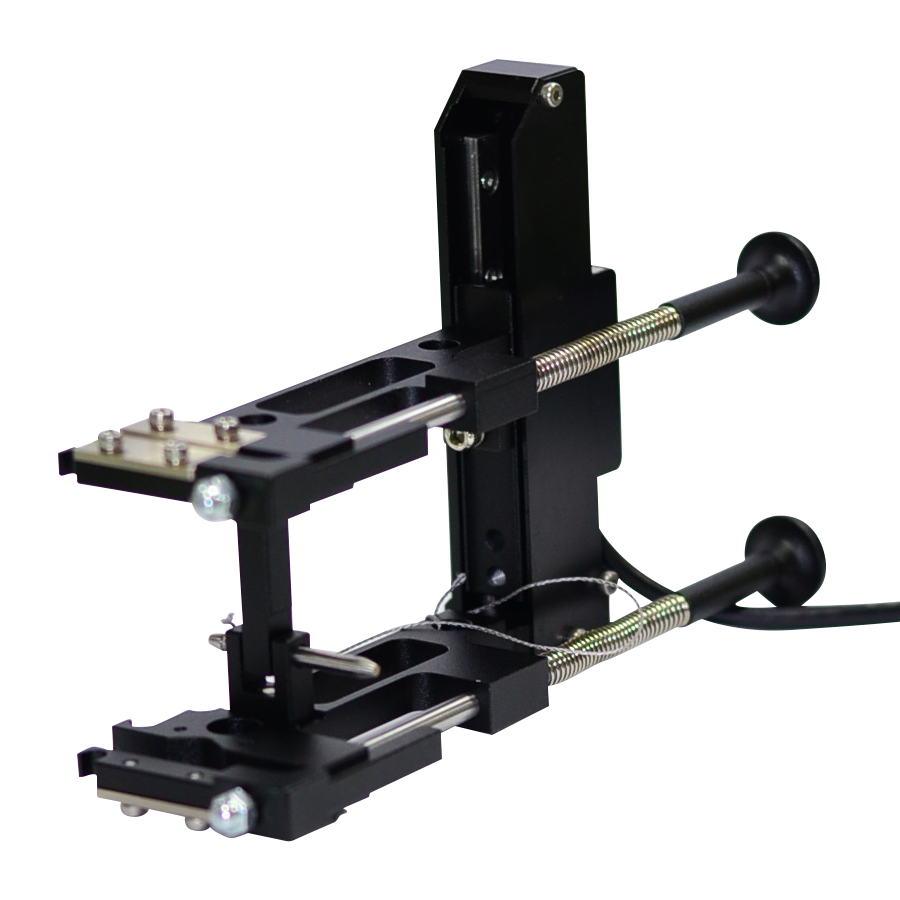

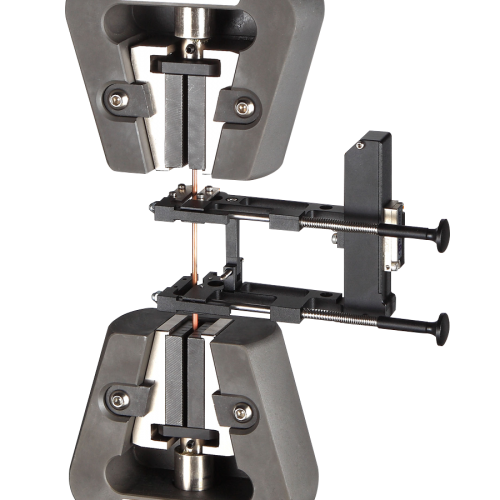

QC-557 short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.

Gauge Length 25mm/50mm(switchable two gauge length)
Elongation 100%(at 25mm)/50%(at 50mm)
Features

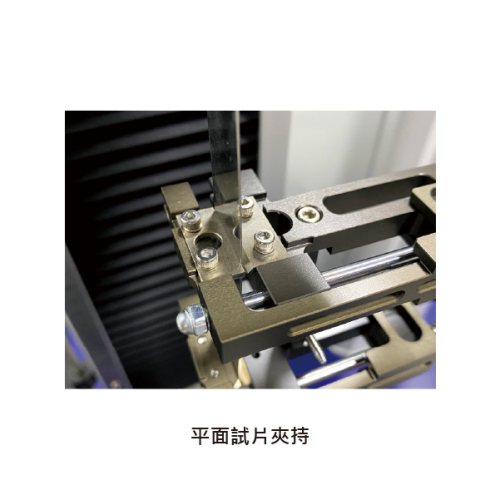

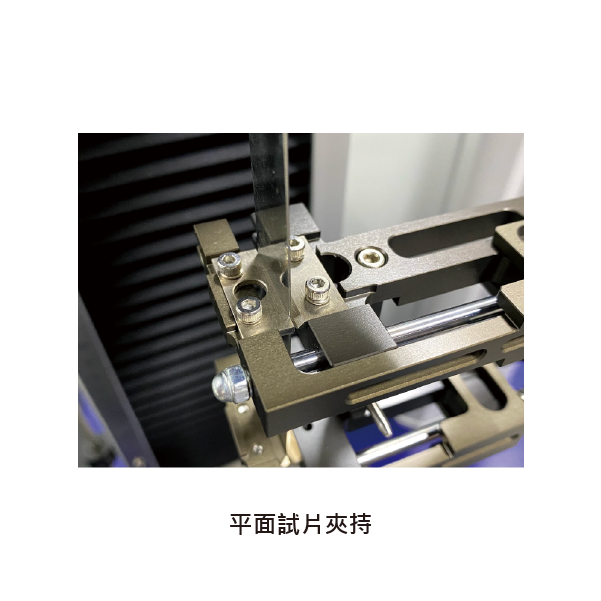

  1. With flat grip and round grip of accessories

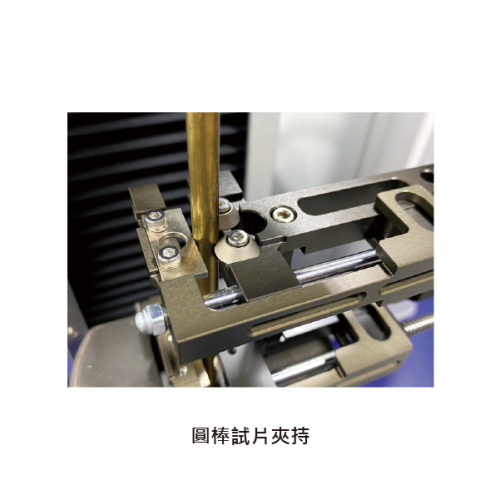

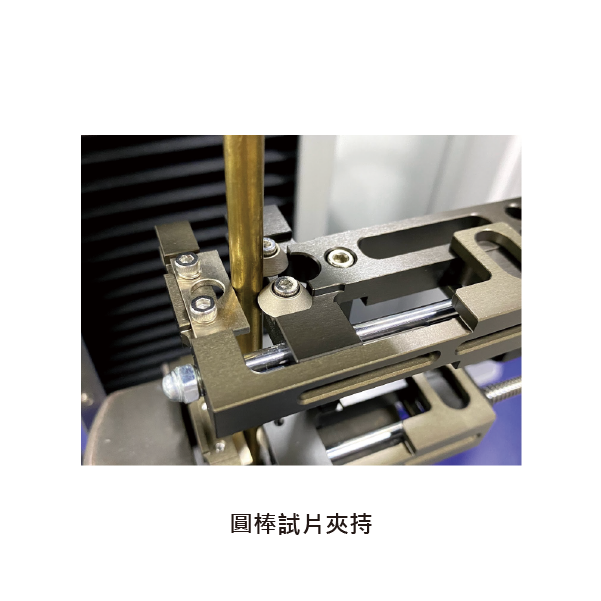

  2. Can clamp the specimen thickness of 0-22mm and round specimen dia

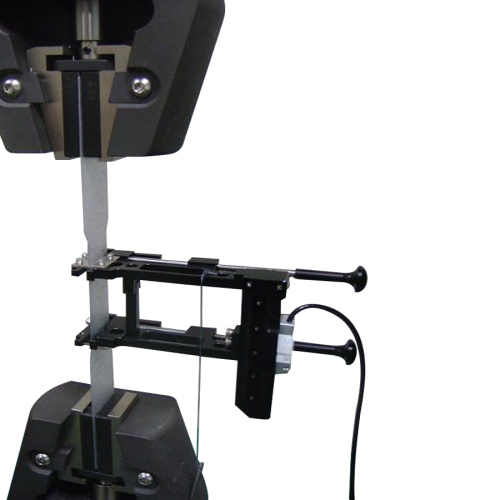

  3. Can do test until the specimen broken and do not dismantle it.
Resolution 0.5μm
Output signal OC single-ended output/A, B differential output
Max output frequency 64KHZ
Input voltage DC5V±5%
Power AC100-240V
Weight 162g
Extensometer signal mode
FeaturesColor
GND BLACK
B- BLUE
A- YELLOW
5V RED
B+ PURPLE
A+ GREEN

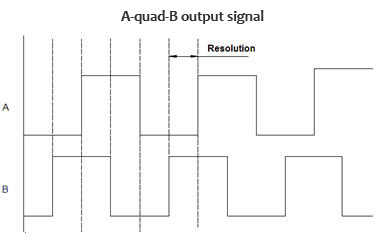

Diagram A: output signal Signal line features and color comparison table
