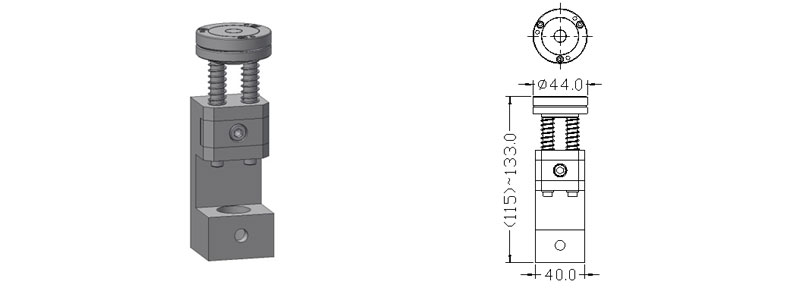

GR-G04B Compression Platens
Capacity 100N
Max. diameter 30mm
Temperature limits -10~100℃
Weight 850g

Suitable to test small sprin compression.

GR-G050 Ring Crush Grip For Paper
Capacity 5kN
Specimen size 12.7x152.4mm
Specimen thickness 0.28~0.55mm
Temperature limits 0~100℃
Weight

7442g

Suitable to test TAPPI T818 paper ring crush test.

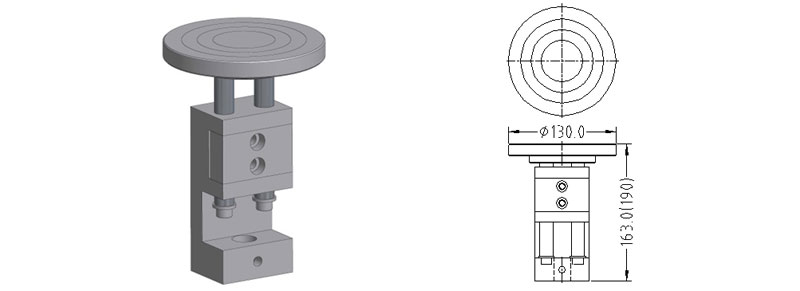

GR-G060 Compression Platens
Capacity 5kN
Max. diameter Ø 150mm
Temperature limits -10~100℃
Weight

4435.5g

Usage Area Ø 100mm

Suitable to test spring and foam.
