No модели : QC-639C、639D

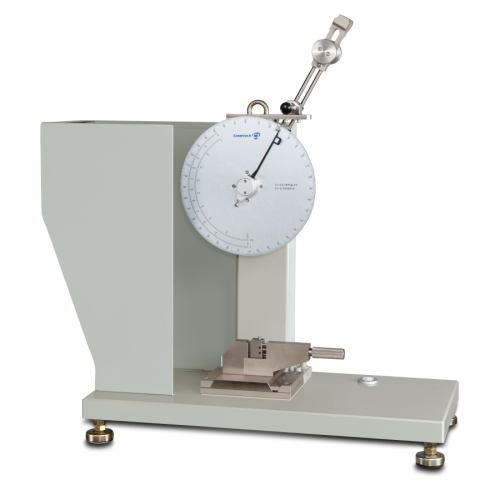

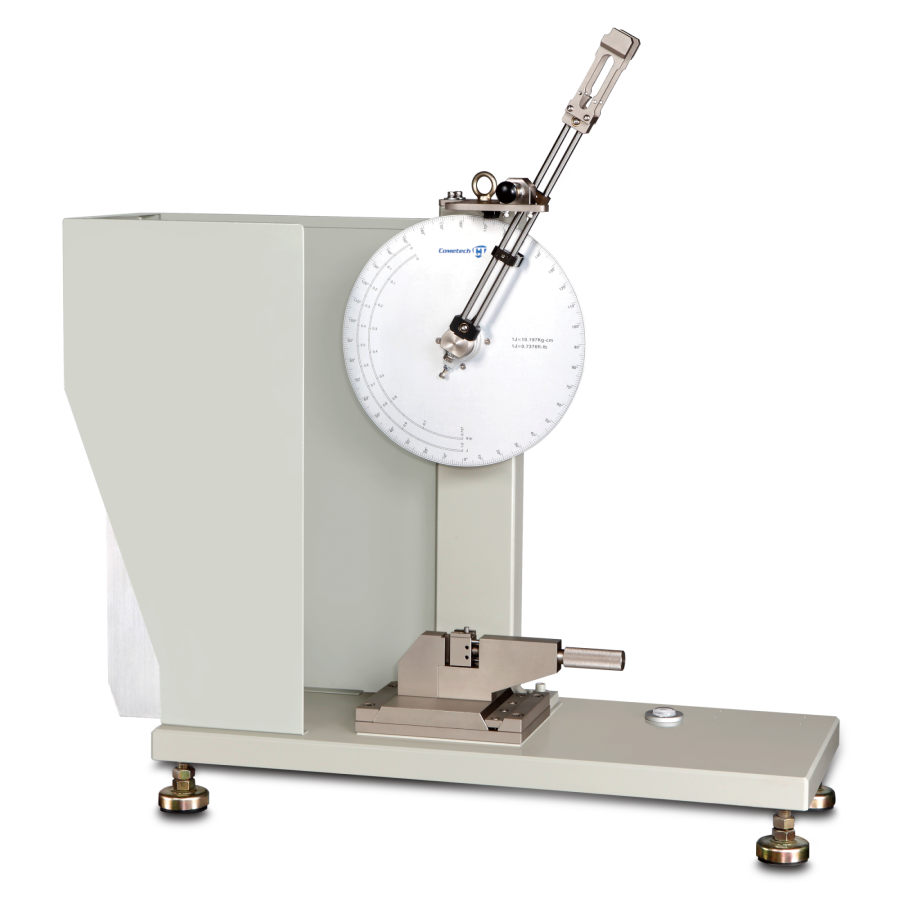

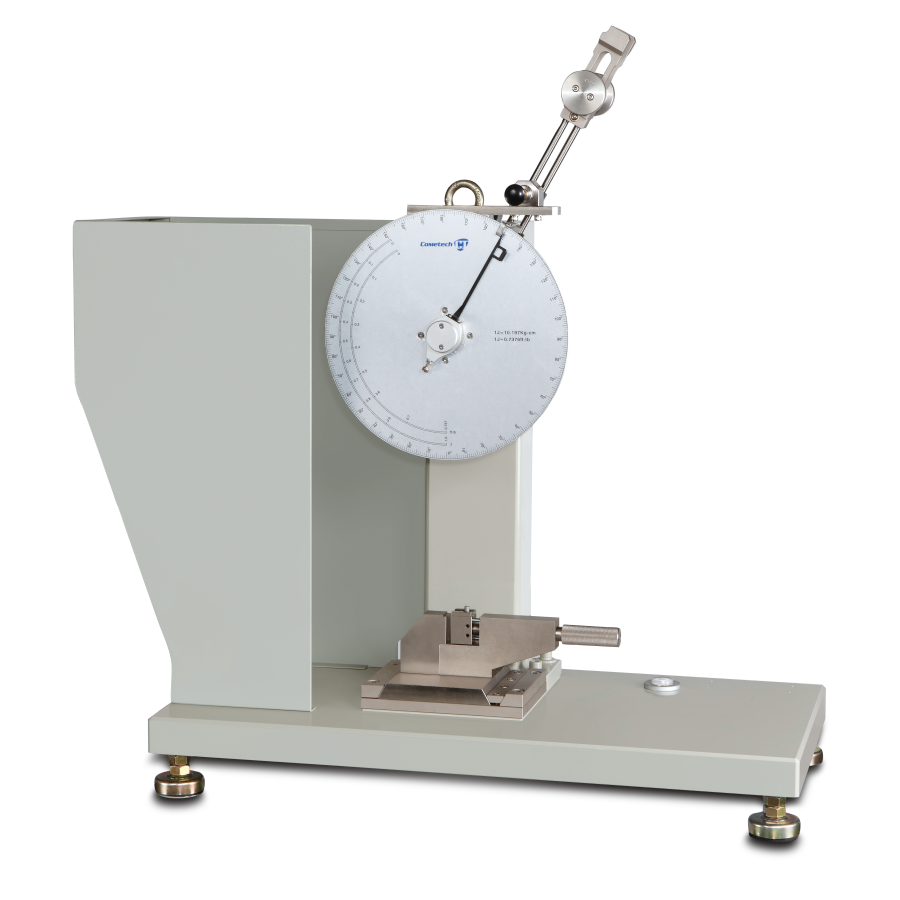

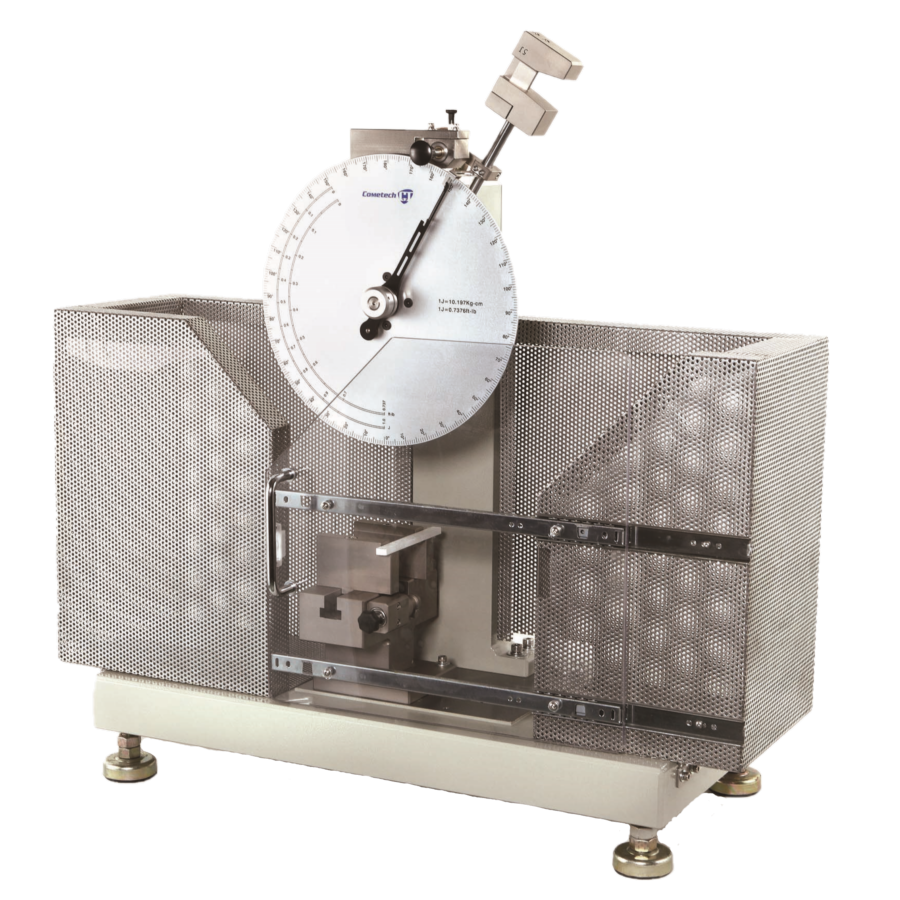

Mechanical Impact Tester
Confirm to ASTM D256, ASTM D6110, ISO179, ISO180, ISO13802 Standard

QC-639C/D series tester can be used to determine impact resistance of polymers. It use the energy conversion to calculate the energy absorbed by the sample after impact. The precise of impact hammer will highly affect the center position of its mass and impact speed, which in turn influence the test accuracy. QC-639C/D uses pointer to record the angle after impact. It has a dedicated software to calculate and correction helping user to get the test result. Izod/Charpy is the most common methods. QC-639S/T can support to change the impact hammer and vise rapidly to satisfy different test condition and standards (ASTM & ISO).

спрашивать

Specification

Model	QC-639C	QC-639D
Test type	IZOD、CHARPY
Start impact Angle	150°
Test Capacity	Izod 1-12J ASTM Charpy 1-12J ISO Charpy 1-5J	Izod 1-25J Charpy 1-25J
Test Capacity	20-80% of the max. capacity is the suggested test range.
Feature	1. Big indicator board for reading the impact energy directly. 2. Standard pointer will be remain at the impact test angle for user to read easily. 3. Equipped with lever device to ensure the machine positioning accuracy. 4. Provide with impact area and collect box to increase the safety and decrease the cleaning time. 5. Able to change vises for Izod/Charpy to satisfy different test standards.
Accessories	Calibration table for hammer, Manual, Energy Calculating Software, Hex Wrench Set
Optional	1. Impact hammers for different energy test and different vises 2. QC-640 Impact Specimen V-notcher
Dimension	90 × 30 × 70 cm	95 × 38 × 76 cm
Weight	100 kg	160 kg
