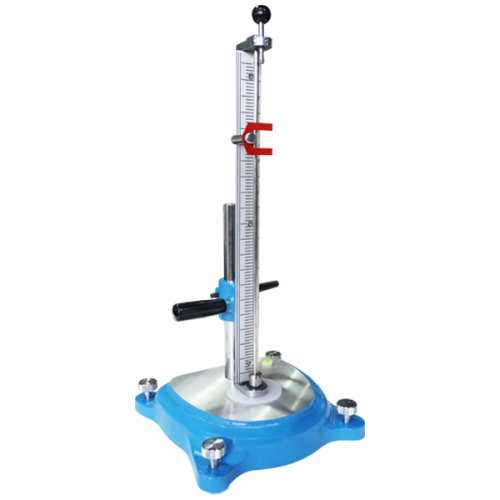

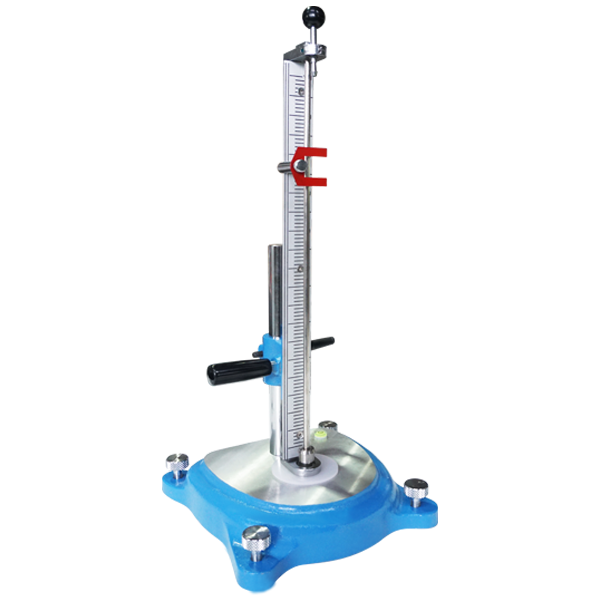

Vertical Rebound Resilience Tester

Главная / Продукты / Резина и пластик / Vertical Rebound Resilience Tester
No модели : QC-638
Vertical Rebound Resilience Tester
Confirm to ASTM-D2632 Standard

This tester is based on free vertical drop hammer test method to test rubber elasticity. The 28 gram of hammer raised to 400mm height and to do impact. Average 4rd, 5th and 6th of impact bound height value which can get rubber elasticity.



Industry:Rubber

спрашивать
Model QC-638
Hammer weight 28 g
Impact height 400 mm
Sample thickness 12.5 mm
Dimension 24 × 16 × 48 cm
Weight 8 kg



Test Video         Teaching material SOP        Test Case
