Densimeter

No модели : QC-GF-300

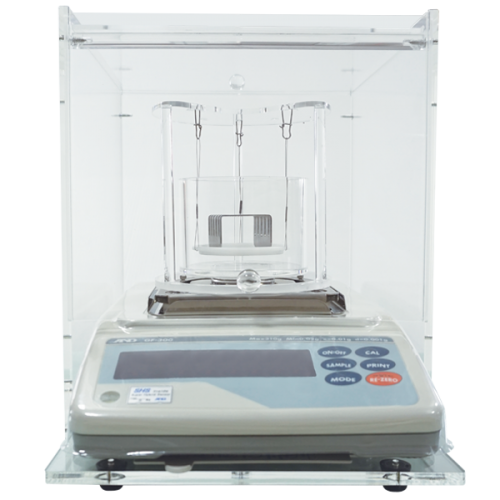

Densimeter
Confirm to ASTM D297-93, ISO 2481 Standard

First weighing the sample mass in air, and then weighing the mass in the liquid (water), through built-in program of tester automatically calculate and show the density directly, the appearance of the test specimen is not limited.



Industry: Rubber, Plastic, Metal

Model GF-300
Weighing range 0 ~ 310 g
Minimum weighing value 0.001 g
Repeatability 0.001 g
Stabilization time 1 sec.
Display type Fluorescence(VFD)Display
weighting pan Φ128 mm
Temp. Compensation coefficient ±2 ppm/℃
Gravity display Decimal three digits
Accessory ※Gravity shelf on set
※Gavity test software can directly read gravity value
※Windproof cover one set
Power 110V,6A
Dimension 44 × 32 × 27 cm
Weight 5.4 kg



Test Video         Teaching material SOP        Test Case
