No модели : QC-659H

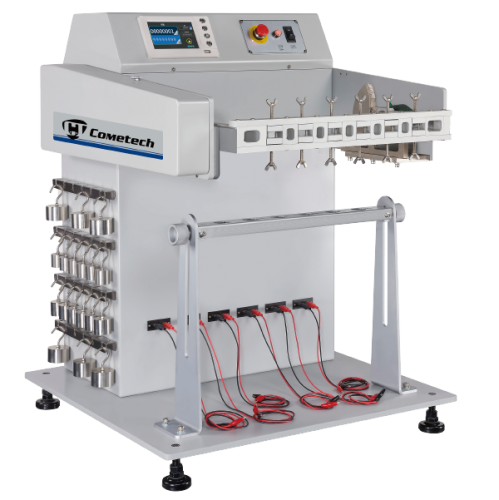

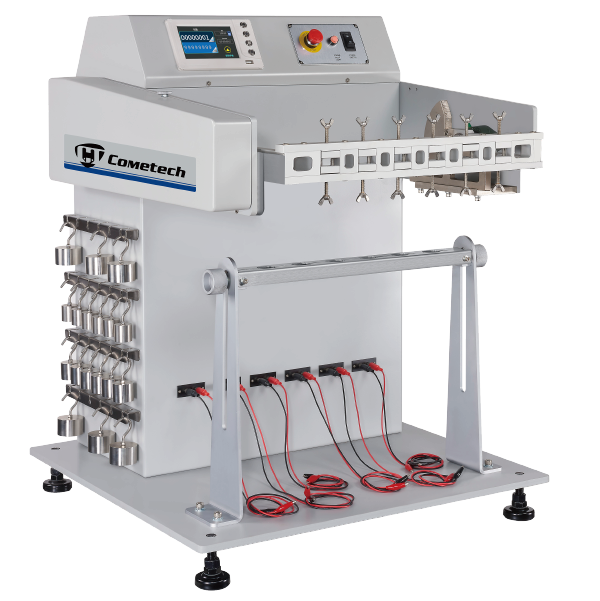

Electric Plug / Cord Bending Tester
Confirm to UL-817, GB T14471 Standard

This tester is specialized in conducting bending test for wire products. The circuit breaks when the core wire reaches its flexing endurance. Bending count is usually measured to determine the flexing endurance of the sample. QC-659H is equipped with a touch panel to display and record bending count. The built-in system can support different test stop situations such as count completed, break and pause functions. It also has the emergency stop button as basic protection.



Industry: Electron, Electric wire, Electric equipment

спрашивать
Swing angle ±30°, ±45°, ±60°, ±75°, ±90° (adjustable) with angle indicator to identify bending angle
Speed 10-100 CPM (counts per minute)
Stations Six sets
Weight 100g, 200g, 300g, 500g ( 6 pieces for each capacity)
Controller 1. Include six independent counters and one gross counter
2. Maximum testing count: 99,999,999 times
Dimension 71 x 62 x 89 cm
Weight 140 kg
Power Single phase 100~240 V


1. Equip with touch panel for easy operation.
2. Chinese/ English interface
3. Able to display the machine instant working status such as testing, pause and test completed.
4. Equipped with counter to calculate remain testing time automatically.
5. Able to set bending count up to 99,999,999 times.
6. Provide high-precision digital speed setting with range 10-100 CPM.
7. Support displaying specimen break, count completed, and emergency stop status.
8. Power supply 100-240V, without occasion restrictions
100g, 200g, 300g, 500g (6 pieces for each capacity)
