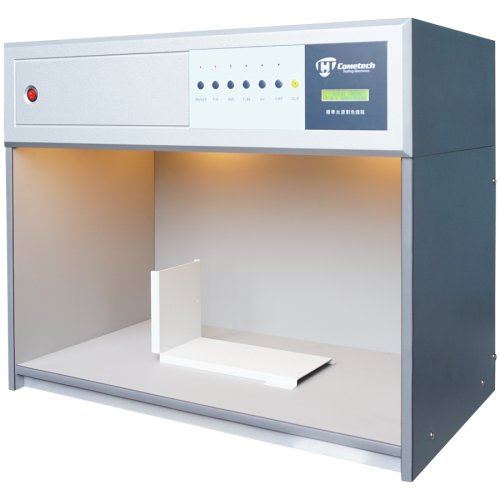

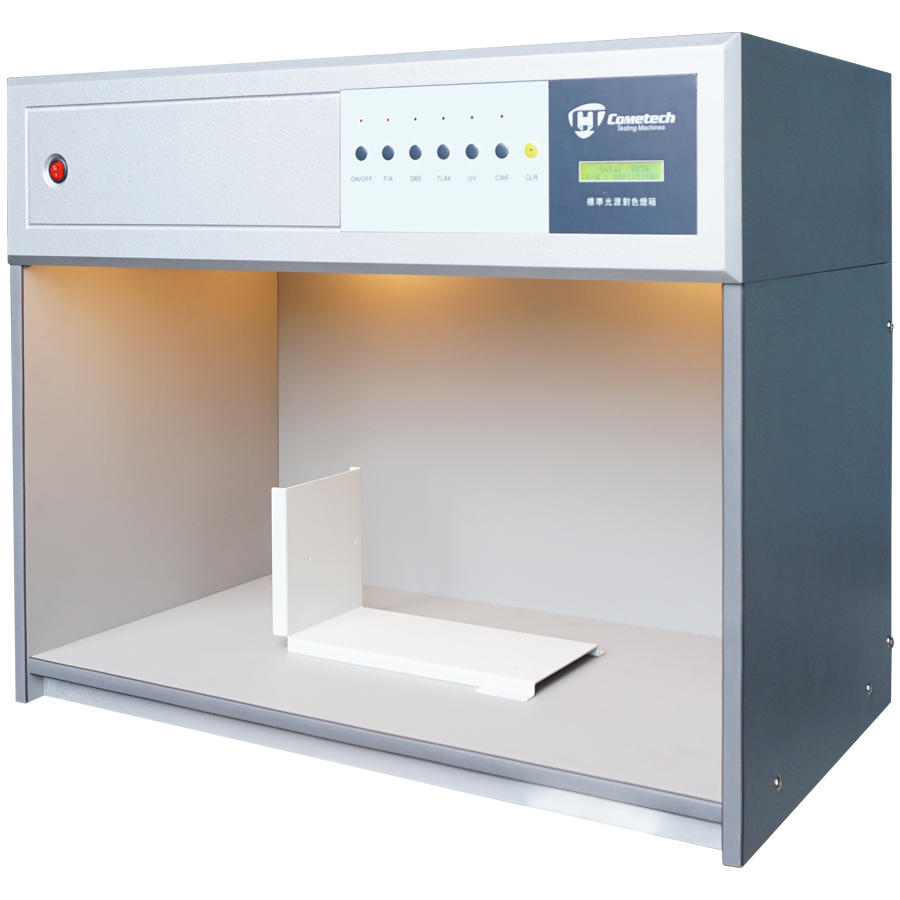

Super Daylight

No модели : QC-701A
Super Daylight
Confirm to JIS-Z8724, CIE-30 Standard

Standard super daylight can simulate various illumination conditions; provide an objective environment for users that can proceed with specimens color comparison.



Color’s determination on different light source environments has various color effects, QC-701 SUPER LIGHT provide D65 standard artificial daylight, UV fluorescent reaction light source, A yellow light source, etc. main and common light source environments. (Other light source also can be selected), this tester can accumulate light source using time that can be as light tube lifetime basis.

Industry: Textile, Printing, plastic, varnish

Inner chamber 67×37×35cm
Light Source
Light Application Color Temp Watt Specification
D65 Artificial daylight 6500K 2 pcs ×18W TL-D 90 De LUXE 18W/965
TL84 Europe,
Japan light source
4000K 2 pcs×18W T.D 18W/840 COOL WHITE
CWF Cold fluorescence, America light source 4200K 2 pcs×20W F20T12-CW COOL WHITE
A Sunset light,
yellow light
2700K 4 pcs×40W 40W
colorimetric light
UV UV light source Fluorescence reaction 1 pcs×20W G.E. 20W



Control method Control method: Complete-electronic type starter with high frequency, Users don’t have to wait for start.
Timer 5 Sets. For record the using of each light. Lamp lifetime is 1000 hours.
Feature 1. Partition lampshade for homologies light source
2. Light Spot will not occur easily
Dimension 72×42×58cm
Weight 25kg
