Digital H.D.T. Heat Deflection Tester

Главная / Продукты / Резина и пластик / Digital H.D.T. Heat Deflection Tester
No модели : QC-656A

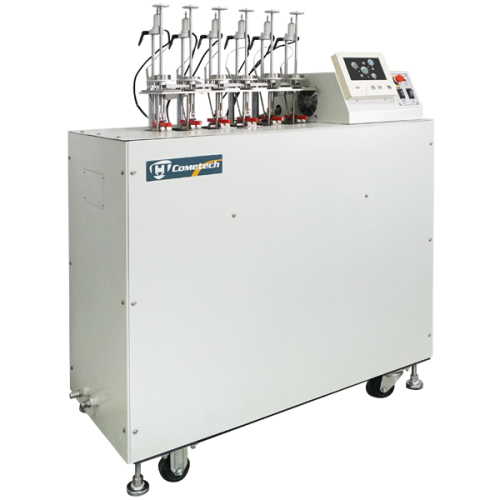

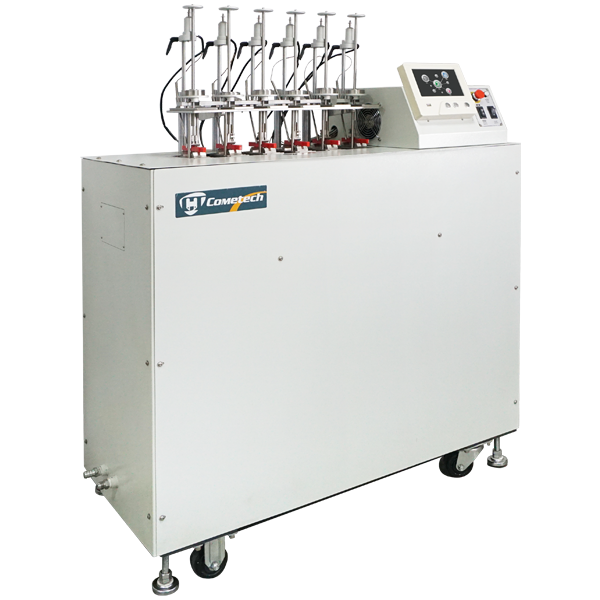

Digital H.D.T. Heat Deflection Tester
Confirm to ASTM D648 ISO 75-1 Standard
Introduction:
The specimen is given a flexion stress at the center, and the temperature should increase by 2 degrees Celsius per minute. When the specimen’s center undergoes a deflection of 0.254mm, the temperature is determined as the specimen’s deflection temperature. The tester is equipped with touch screen that guides users step by step. A user-friendly interface and standardized process are designed to orientate users in the shortest possible and to reduce test errors. The system has built-in calculation function, user can enter the specimen dimension to get the required weight. During the process, the specimen holder and the weight frame automatically rise and descend to facilitate specimen’s installment. This tester has 6 test stations, each one can show the independent temperature and displacement on the display. When it reaches deflection value, it will record the temperature and stops and start cooling system. Smart testing process is time-saving and requires only a minimum of testers.

Relative:
■ QC-661 Digital Vicat Heat Deflection Tester
■ QC-662 Vicat Heat Deflection Tester
■ QC-657B H.D.T. Heat Deflection Tester
спрашивать
Temperature Room temperature - 300℃
Temperature Control 2℃ increase per minute (adjustable)
Weight Weight support 2.7 N. Each station has the following weights:
0.1N×1, 0.2N×2, 0.5N×1, 1N×1, 2N×2, 5N×1, 10N×1
Delfection Reading 0.001~3.000 mm
Flexion Span 100 mm, 64mm (101.6mm for options)
Specimen Support's Surface R=3.0 mm (able to add the Vicat heat deflection test head)
Specimen Dimension ASTM L=5”(127 mm), d=1/2 ”(12.7 mm), b=1/4”( 6.35 mm)ISO edge wise L=120mm, d=10mm, b=4mmISO flat wise L=80mm, d=10mm, b=4mm※Specimen deviation should be±0.1 mm
Temperature Equalization Method Circulating flow
Cooling Method Water cooling
Stations 6 test stations
Oil Chamber Capacity 25 L
Dimension 48×110×125 cm
Weight 230 kg (Empty); 250 kg (oil inlcuded)
Power Sigle Phase 220VAC

Weight Calculation:
※Able to switch test standard ASTM or ISO and enter the specimen dimension for load auto-calculation.



Test Display:
※Able to test 6 specimen to test at the same time.Each sample holder has its own temperature and displacement measure tool. Display will show the real-time test situation. When reaching deflection value, it will stop and start cooling system.
