No модели : D1

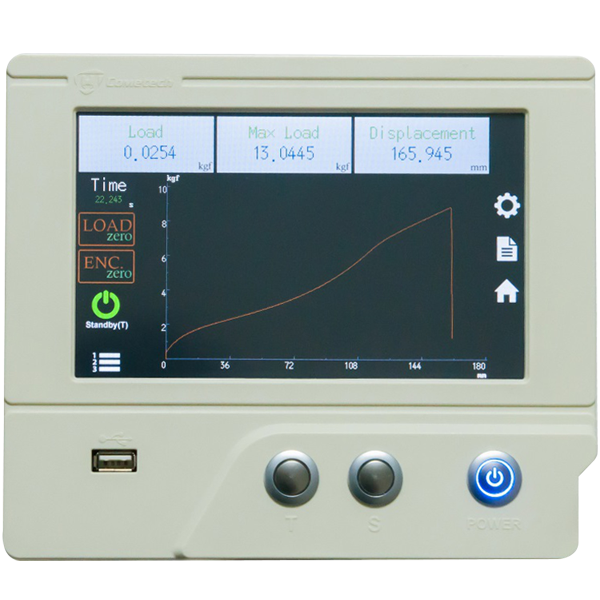

D1 CONTROLLER

Description:
D1 controller is basically designed for material testing, which can analyze load cell, torque sensors, pressure sensors, encoder and so many varieties of signals.Every kind of units can be changed according to user’s demand when using it. It will display the real time value and the short timing data. it will has a real-time display or record the short time data. Data can be restored and exported to EXCEL sheet for further analysis by USB. Or the specified software can also be an option for proceeding with further analysis. When customer has a special requirement, it also could be modified and designed based on their needs.

Appropriate using occasion:
Simple material testing device, various forces display, teaching analysis, data measurement for industries

спрашивать

Specification

Model	D1 Controller
Power force(DC)	6V
Control signal input	Two sets of input signal for selection Stress sensor: 4~20mA Force sensor: 1.0mV/V、1.5 mV/V、2.0 mV/V、3 mV/V、4 mV/V
	Two sets of Encoder signal input
	Input signal: upper limit, lower limit, emergency stop, go up, go down, full speed
Control signal output	One set of breakpoint output signal
Communication Interface	TCP/IP RJ45 Connecting Cable
Load cell Revolution	1/10,000
Encoder signal voltage	5V
Encoder signal mode	Single- ended (Open Collector)、differential square wave(Line Driver)
Display panel	7 inche of TFT Color touch panel
Language selection	Chinese, English, Japanese
Data assess	Can use USB to proceed with data access (can export test data to Excel for further data analysis)
Data assess	Specified software is optional for data access
Data sampling rate	3、5、20、50、100、500、1200

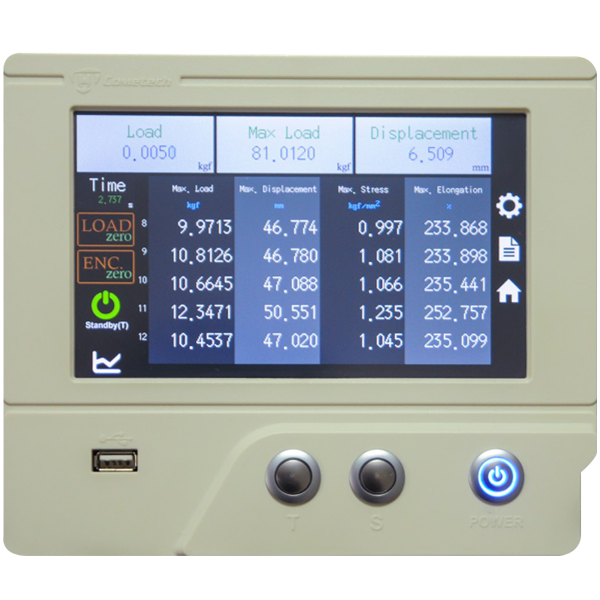

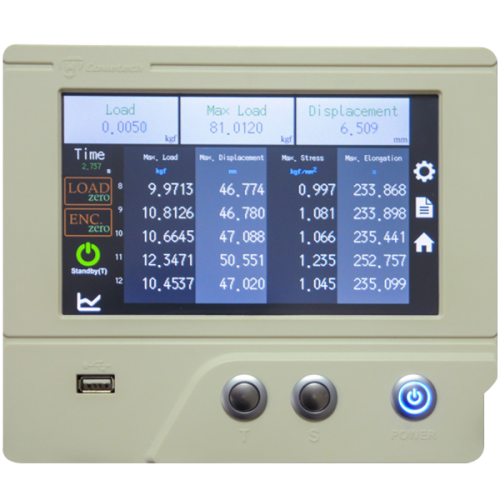

Interface function	Data Display: Force , Stress, Torque, Displacement, Time
	Graph Display : Force, Displacement, Time

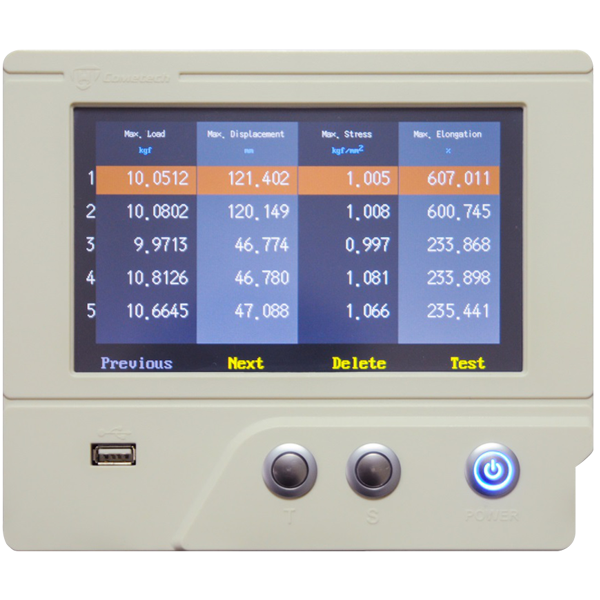

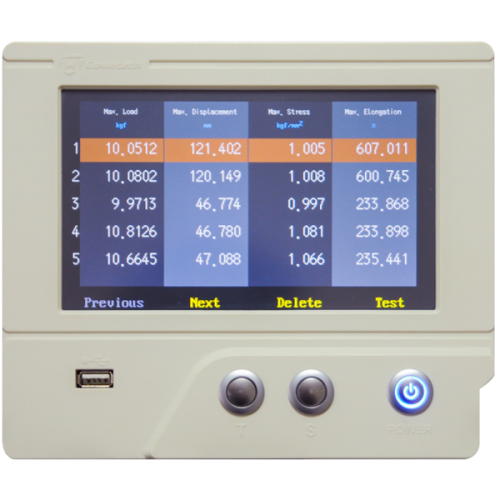

	Date Analysis : maximum force, deformation percentage at maximum force point, stress at maximum force point, percentage of elongation at maximum force point, force at break point, deformation percentage at break point, stress at break point, percentage of Elongation at specified break point, interval average load, Max. Force…..so on.
	Unit changeable (Metric system or imperial system)
Calibration setting	Calibrated parameter setting can be provided
Calibration setting	Can be used on various capacity of load cell and no need to recalibration after replacement.
