Product Serial : QC-337

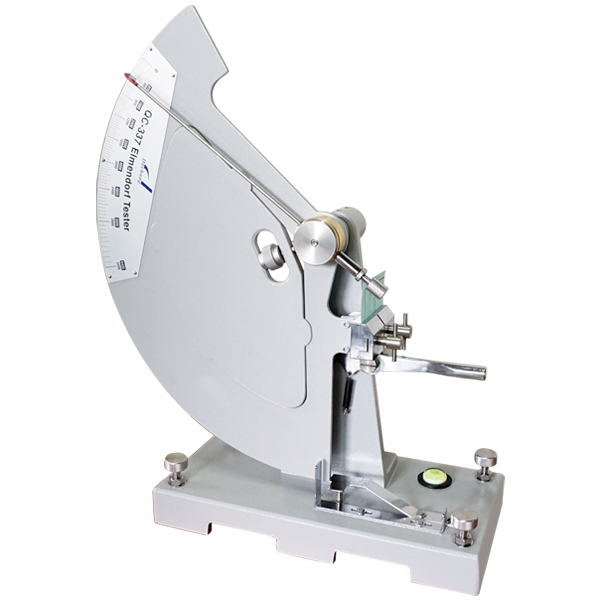

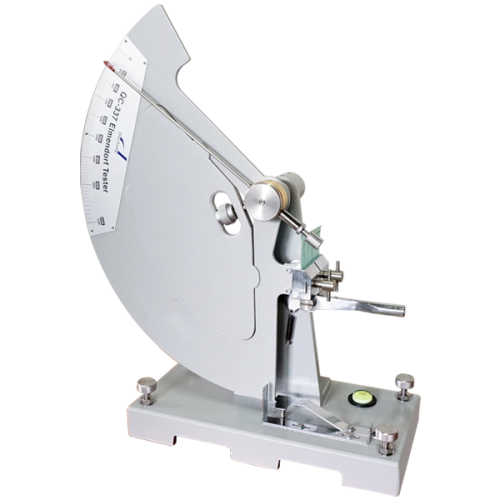

Elmendorf Tearing Strength Tester
Confirm to TAPPI-T414, JIS P-8116 Standard

QC-337 can be classified by different test strength; it can test the tear strength of paper, fiber and PVC material. Grip the specimen and use cutter to make a notch. Falling pendulum will use its swing force to tear the specimen and by changing elevation energy of pendulum as specimen tear strength. Meanwhile, the scale will indicate the tearing force. Tearing force is adjustable according to specimens’ strength



Industry: Textile

Model QC-337
Specimen size 63.5 × 100 mm
Capacity  0~3200g / 0~6400g
(Capacity changeable)with counterweight
Dimension 47 × 25 × 38 cm
Weight 25㎏
