UNIVERSAL materials testing machine | QC-506M2F(20kN)

Home / Products / Tensile Testing Machine / UNIVERSAL materials testing machine

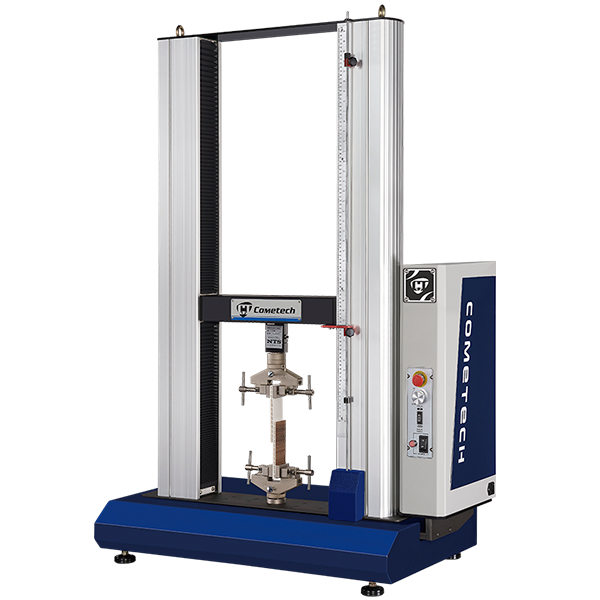

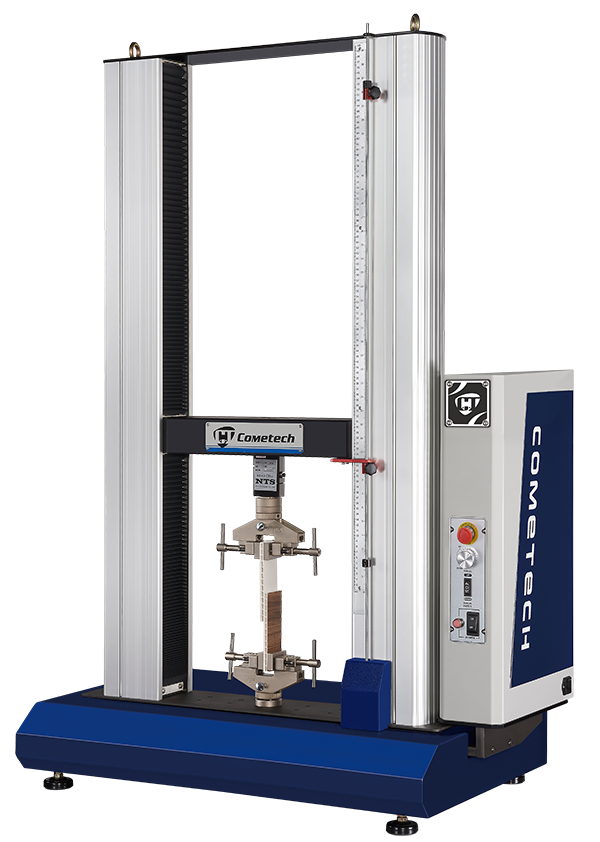

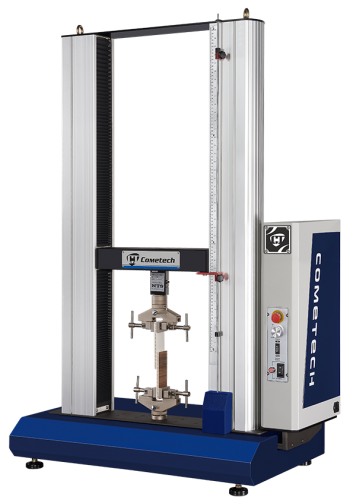

Product Serial : QC-506M2F(20kN)
UNIVERSAL materials testing machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

The table type has large test space and long stroke. Multiple model of width can satisfy large specimen test requirement. The maximum test capacity is 20 kN with high precision, low noise and maintenance-free of servo drive system. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results
Supportprecisionjogwheel can befine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy. High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.


Industry:Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Architecture

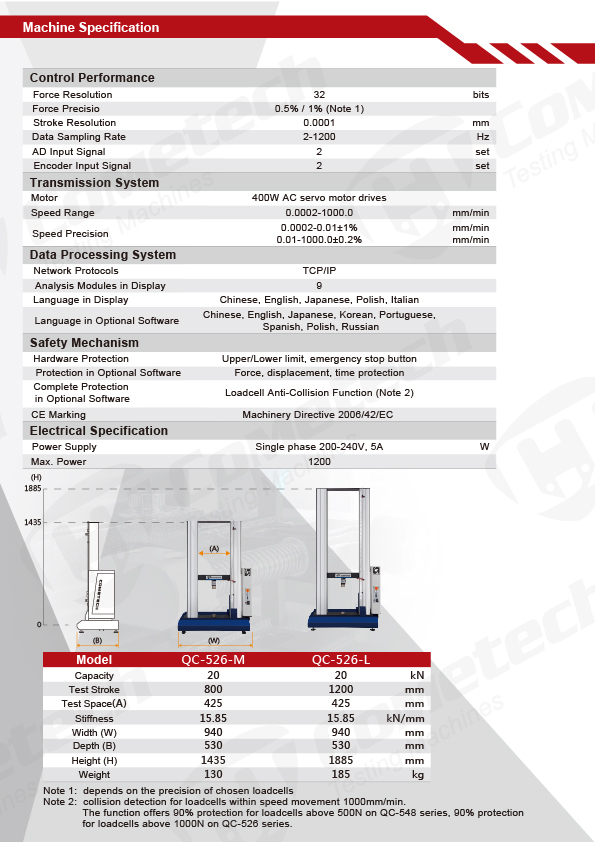

Model QC-506M2F QC-506M2F extended
Max. Capacity 20kN
Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)

Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 31 bits
Force Precision 1/100,000
Test stroke(w/o grip) 800mm 1200mm
Stroke resolution 0.0001 mm
Space between columns 425 mm (550mm, 680mm, 800mm optional)
Speed range 0.0002 ~ 830 mm/min adjustable(Set up by computerized)
Speed accuracy High speed mode
0.05 ~ 830 mm/min
Low speed mode
0.0002~3 mm/min
PC-Port RJ45(TCP/IP)(Connect software optional)
Data sampling rate 1200Hz (Max.)
Hardware safety protection upper limit, lower limit, emergency stop button
Motor type Servo Motor
Stiffness Slop 1585kgf/mm

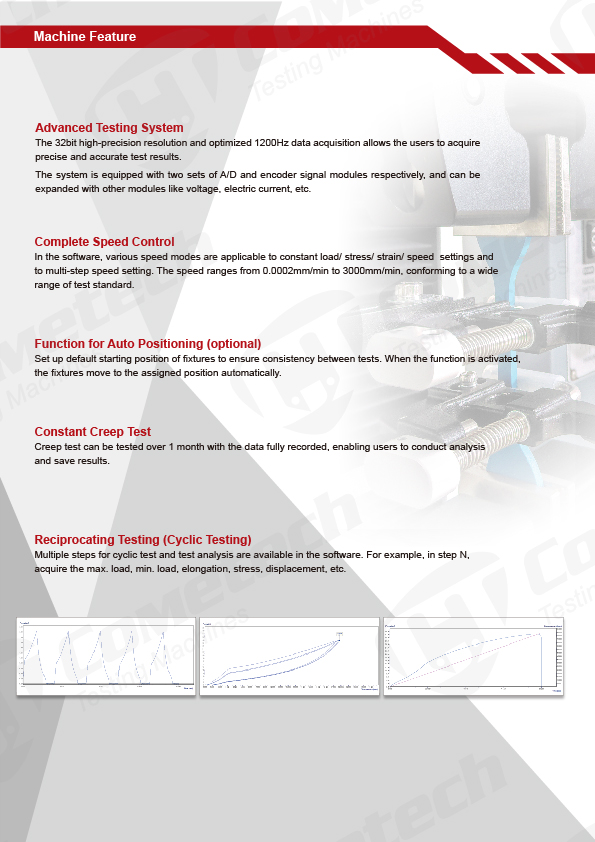

Feature

※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply Single phase 200V-240 V, 5A
Dimension of Machine 95 x 58 x 151 cm 95 x 58 x 190 cm
Weight of Machine 145kgf 170kgf

(1) Grip& Load Cell

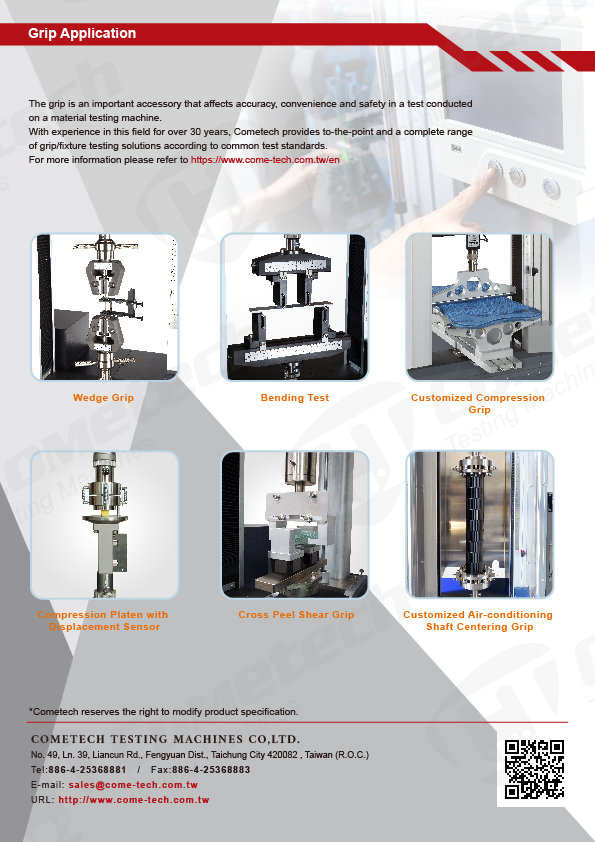

Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.

★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell



(2) Displayer

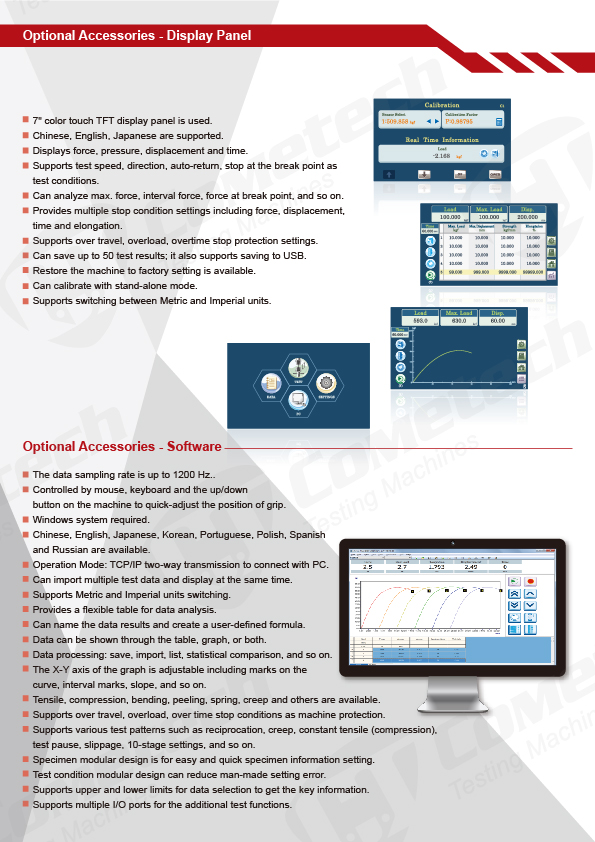

1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.



(3) Extensometer

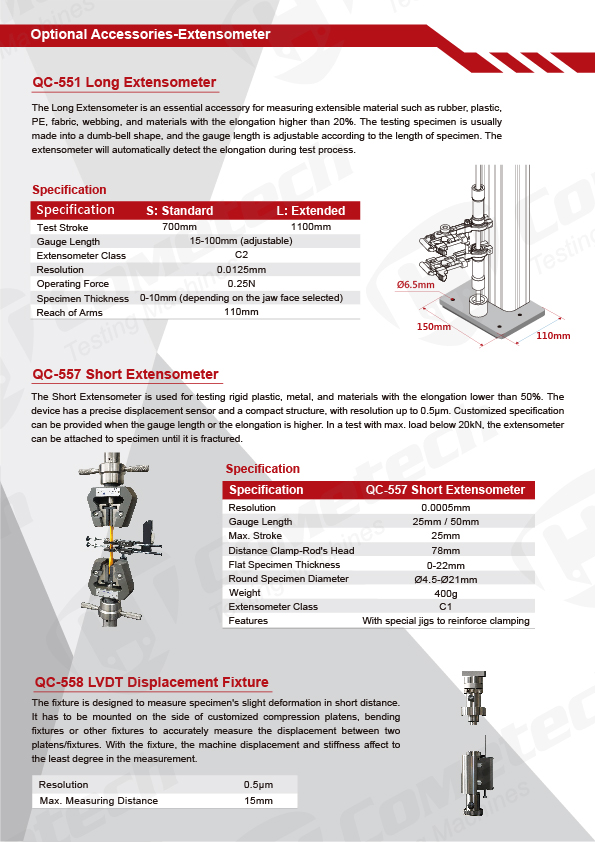

1.QC-557 Short extensometerwhich is applied in under 50% of elongation test.




QC-557   QC-515



2.QC-515 Long extensometer which is applied in over 20% of elongation test.

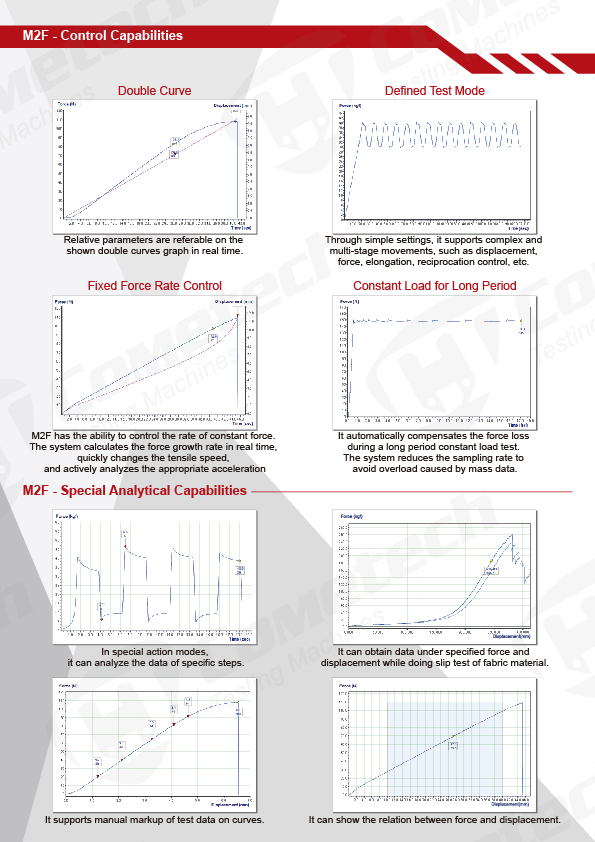

1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism

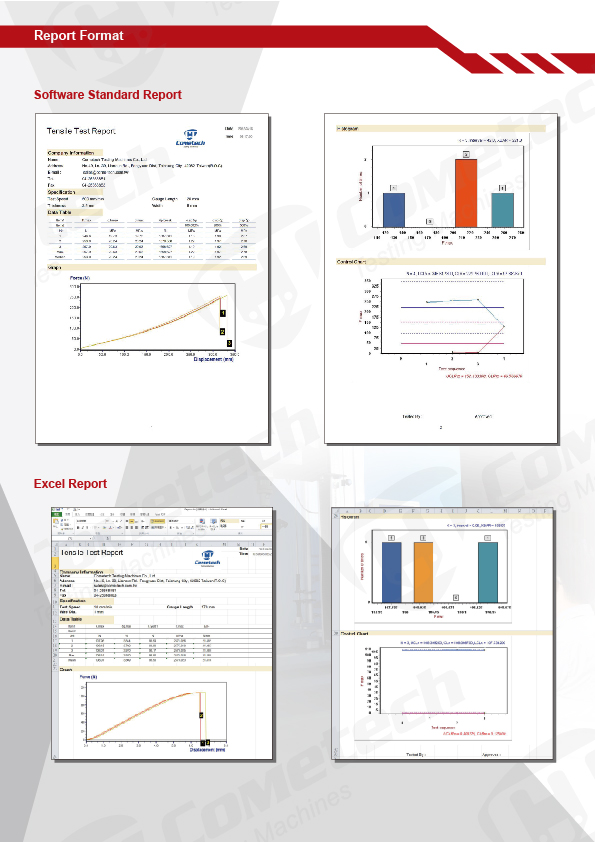

(1)Software interface (2)Report

*Cometech reserves ultimate modification right of product specification.
