Home / Products / Tensile Testing Machine / QC-501M1F, 502M1F, 503M1F Computerized Tensile (compression) testing machine
Product Serial : QC-501M1F, 502M1F, 503M1F (100~300kN)

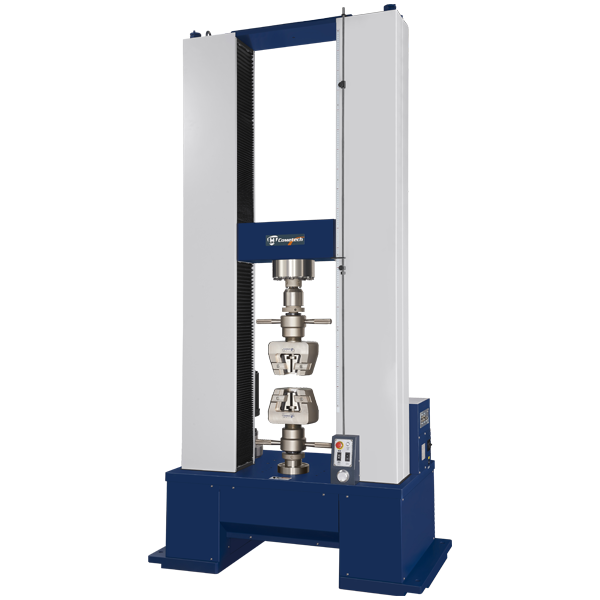

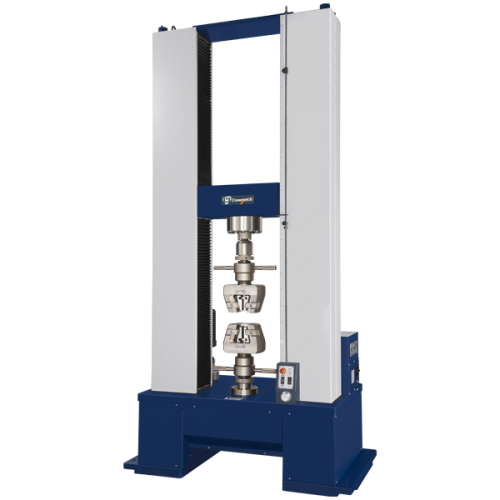

QC-501M1F, 502M1F, 503M1F Computerized Tensile (compression) testing machine
Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 10002-1, EN 1002-2,BS1610, GB228 Standard

This model is capable for the capacity that above 100KN test. Qualify ASTM、ISO、JIS、GB standard with material and finished product. Use servo motor with high precision reduction mechanism transmission. The structure with high rigidity, high strength which is more stable during testing can reduce machine wear.

It is suitable for Metal, Composites and Architecture industry. Also provide the quiet testing environment and high accuracy test result. Have 7 inch TFT touch screen for optional, can stand-alone to processing test. Support precision hand wheel to control the movements of the machines. Use precision positioning and the calibration of machines is more convenient to user. Also, could reduce overload situation. The test speed range is capable for 0.2-375mm/min. And satisfy more standard requirement.

Industry:Plastic, Textile, Composites, Metal, Architecture.

Inquiry



Model QC-501M1F QC-502M1F QC-503M1F
Max. capacity 300 kN 200 kN 100 kN
Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution 1/100,000 (31 bits)
Load cell accuracy ±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)
Test Stroke (w/o grip) 1100 mm
Stroke resolution 0.0001 mm
Space between columns 550 mm(680mm, 800mm Optional)
Speed range 0.2~330 mm/min (Can be set by computer software ) 0.2~375 mm/min (Can be set by computer software)
 Speed accuracy ±1%
PC-Port RJ45(TCP/IP)[Software optional]
Data sampling rate Maz.400Hz
Motor type Servo Motor
 Frame Stiffness 562 kN/mm 171 kN/mm
Feature ※Automatic reading of load cell feature information
※Automatic reading of displacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection
Power Supply 3 phase 200~240VAC，30 A 3 phase 200~240VAC，20 A Single phase 200~240 VAC, 10 A
Dimension of Machine 140 x 66 x 235cm 120 x 60 x 220cm
Dimension of Machine 1250 kg 800 kg



(1) Displayer

1. Adopted with 7- inch of TFT Color touch screen.
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time.
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units.
10.Over-travel, overload protection and overtime machine stop.
11.Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.



(2) Extensometer




QC-557 Short extensometer
Suitable for elongation below 50%

QC-551 Long travel extensometer
Suitable for samples with over 20% elongation





1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.
3. Compatible with Window 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action.
6. Can import multiple test data display simultaneously.
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis.
9. Data name can be self-set and can self-defined formula.
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions,，Ex. hold tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism.

(1)Software interface (2)Report
