Carton Packaging Compression Tester

Главная / Продукты / Упаковка / Carton Packaging Compression Tester
No модели : QC-121M2F (20KN. 50KN)

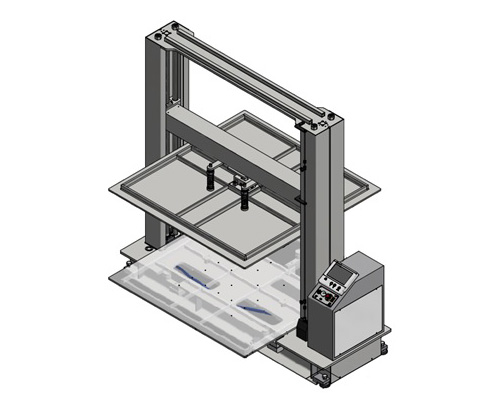

Carton Packaging Compression Tester
Confirm to ISO 12048 ISO 2872 ASTM D4169 TAPPI T804 GB T4857-4 JIS Z212 Standard

This model is designed for test in common corrugated carton or other materials package container to proceed with whole carton compression strength test. To prevent package carton strength is not enough during transport, stack, stock and moving and cause product deformation or damage in these inappropriate treatment conditions.Load measuring adopt three point bottom plate induction, large size and capacity can be customized to make servo system more accurate.



Besides, we also provide the software as optional purchase, the software can connection to control machine to proceed with various tests and analysis, it also can show test force and displacement of diagrams simultaneously during test.



Industry: Paper

Model QC-121M2F (A type) QC-121M2F (B type) QC-121M2F (C type) QC-121M2F (Dtype)
Test space 100×100×90cm 120×120×100cm 100×100×90cm 120×120×100cm
Max.Capacity 2000 kg(20kN) 5000 kg(50kN)
Unit switch Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force resolution 31 bits
Force precision 1/100,000
Stroke resolution 0.0001mm
Test speed Low speed mode:0.0001 ~ 0.95mm/min
High speed mode: 0.015 ~ 300mm/min
Hardware safety protection Up/down limit, emergency stop button protection
Motor Servo motor
Feature Upper compression platen with universal design matching with testing subjects that automatically adjust flat surface
PC-port RJ45(TCP/IP)
power Single phase200 ~ 240VAC・5A Single phase200 ~ 240VAC・8A
Dimension of machine 159×100×170cm 179×120×176cm 159×100×170cm 179×120×176cm
Weight approx. 900 kg approx. 1000 kg approx. 1050 kg approx. 1050 kg

Displayer

1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.





1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism
(1)Software interface (2)Report

*Cometech reserves ultimate modification right of product specification.
