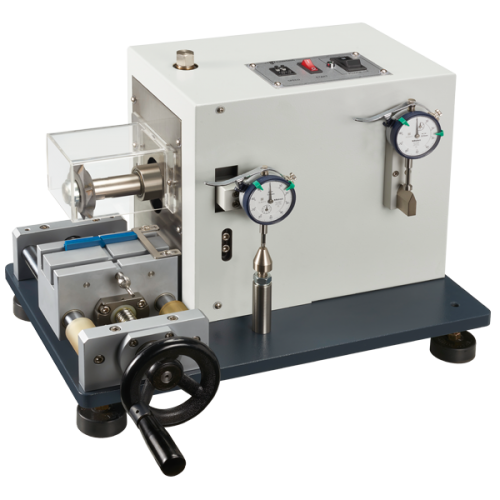

Impact Specimen Angle Cutting Testing of Plastics Device

No модели : QC-640A
Impact Specimen V-Notcher
Confirm to JIS-K7110, ASTM-D256, ISO 179 180 Standard

This tester is used to impact and then cut standard V shape notch of specimens. It can provide steadier and more accuracy result during specimen test. Notch type depend on different standards, user can select various cutter types, notch depth is adjustable conform to specimens’ requirement. Cutting speed is also adjustable to reduce the effect of specimen during cutting.



Industry : Plastic

Model QC-640
Cutting Speed 30-700 m/min
Speed Setting finger flicking switch with 5-99 adjustable speeds
Specimen Size Max. Length 14cm
Width 3~13 mm
Height(Cutting surface) 10~13mm
Specimen Length 8.0±0.2mm (ISO)
10.16±0.05mm (ASTM)
with block gauges,easily switch to other specimen type
Cutting Depth Type A Cutting Knif 45° r=0.25(equipped)
Type B Cutting Knif 45° r=1.0
Type C Cutting Knif 45 r=0.1
Accessory ASTM,ISO standardized blocks
dial indicator x2(meaureing height of specimen and height after cutting)
cleaning bruch, opening wrench, hex wrench
Power Single phase 100~240 VAC
Dimension 48 x 37 x 35 cm
Weight 40kg
