SM Thickness Gauge

Home / Products / Other / SM Thickness Gauge
Product Serial : SM

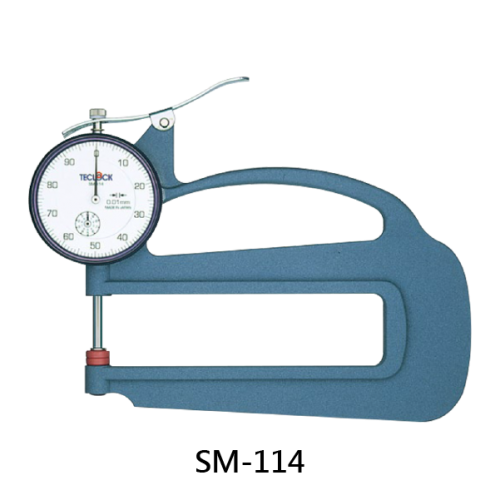

SM Thickness Gauge

SM Thickness Gauge is small, lightweight and easy to carry, with big dial design, easy to get measurement data. Various specifications are available and prices are economy, it is the most people thickness gauge selection.



Industry: Rubber, Plastic

Model Reading(mm) Range(mm) Depth(mm) Load(N)

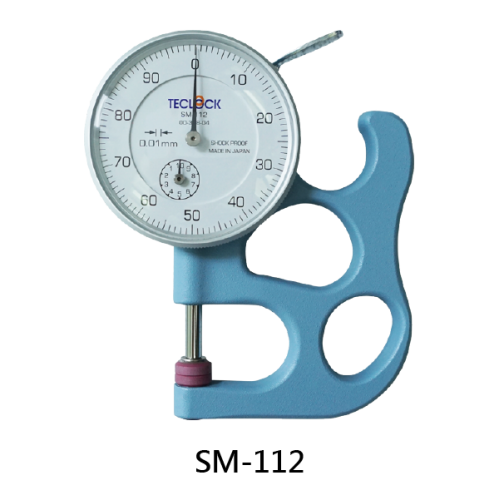

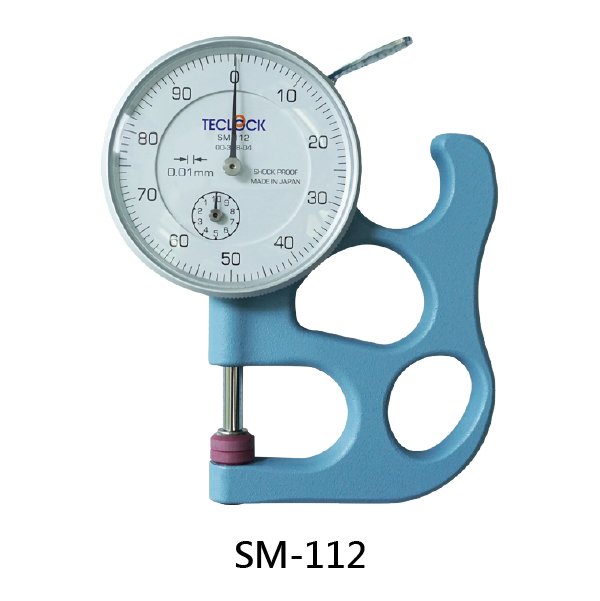

SM-112 0.01~10.0 10 26 >2.5

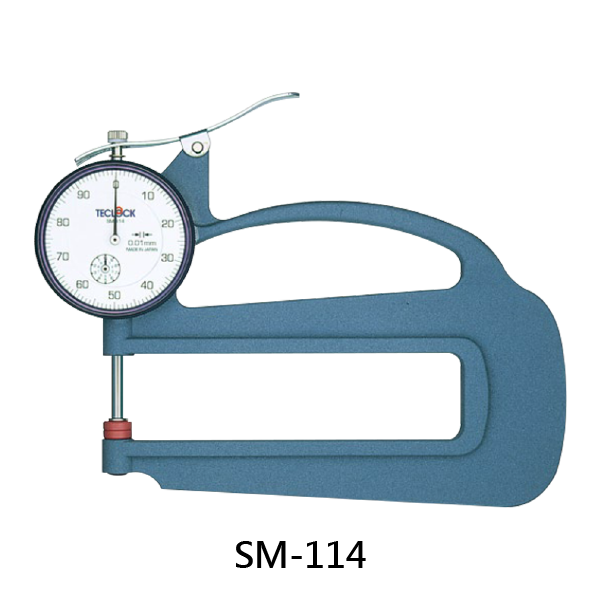

SM-114 0.01~10.0 10 120 2.5
SM-150 0.01~10.0 10 400 2.5
SM-528 0.01~20.0 20 30 3.5

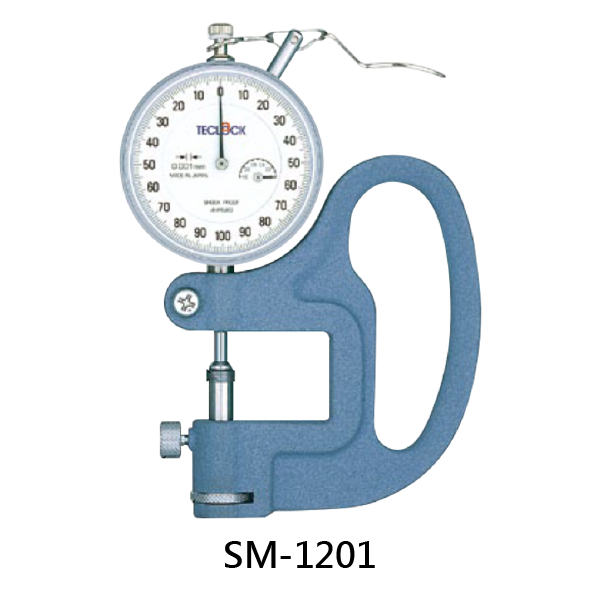

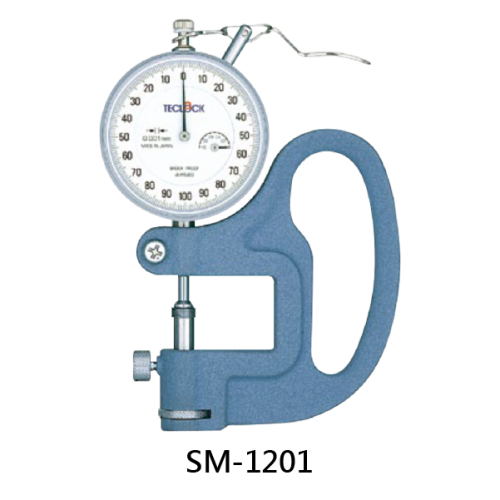

SM-1201 0.001~1.00 10 30 1.5



Test Video         Teaching material SOP        Test Case
