Product Serial : QC-310A

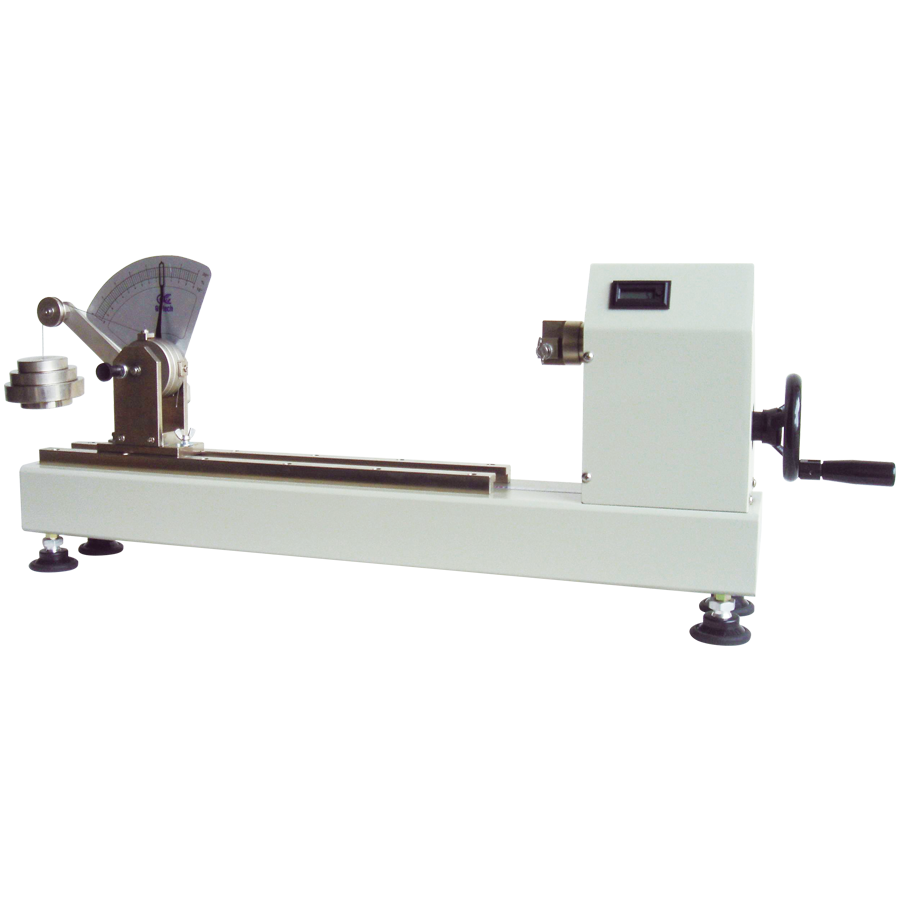

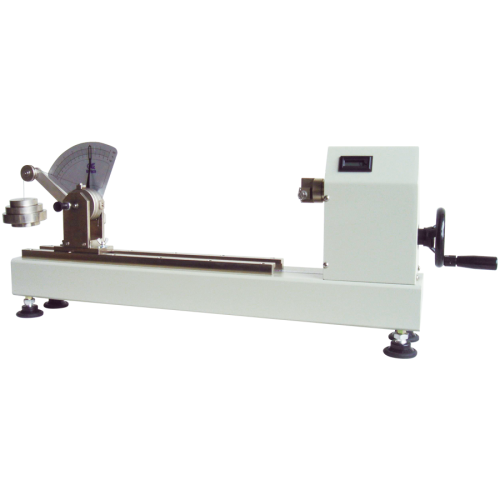

Manual Twist Counter for Steel Wire

QC-310A main function is to test steel wire twist, applied in general twisted wire or hard wire twisted test, with obverse and inverse S and Z twisted direction



Industry: Metal (Steel wire)

Specimen length Common 10"(25.4 cm)or 20"(50.8 cm)adjustable
Turn direction Obverse and inverse turn (S twist or Z twist) all can use
Weight Original weight 2.5N
(Additional weight: 2.5Nx1, 5Nx1, 10Nx1)
Revolution indication LCD display, with button to return zero
Transmission Manual test per three rounds specimen backs one twist circle
Dimension 93×15×45cm
Weight 20㎏

Manual Twist Counter for Steel Wire
